Which protocol is responsible for data plane forwarding in a Cisco SD-Access deployment?

• A.LISP
• B.OSPF
• C.IS-IS
• D.VXLAN

Comment: *

Name: *

Email: *

Verification: *

An engineer is configuring a new SSID to present users with a splash page for authentication. Which WLAN Layer 3 setting must be configured to provide this functionally?

• A.WPA2 Policy
• B.Local Policy
• C.CCKM
• D.Web Policy

Comment: *

Name: *

Email: *

Verification: *

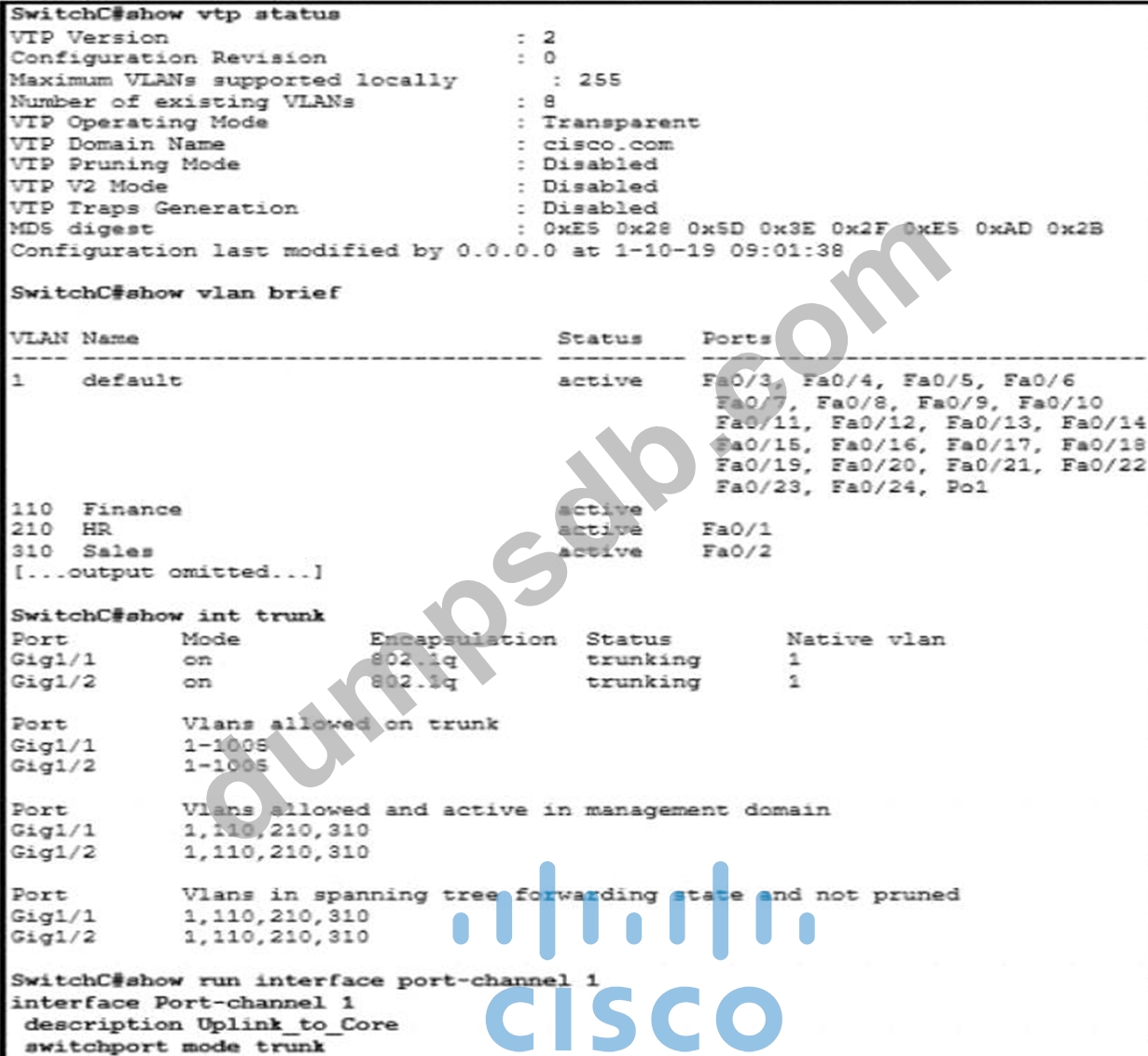

Refer to the exhibit.

SwitchC connects HR and Sales to the Core switch However, business needs require that no traffic from the Finance VLAN traverse this switch Which command meets this requirement?
A)

B)

C)

D)

• A.Option C
• B.Option B
• C.Option D
• D.Option A

Comment: *

Name: *

Email: *

Verification: *

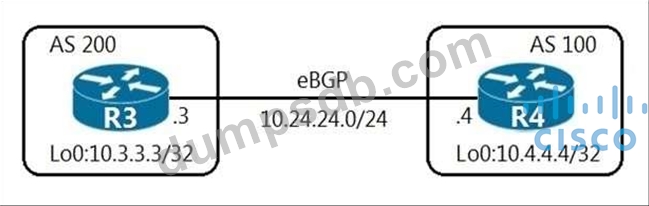

Refer to the exhibit.

An engineer must establish eBGP peering between router R3 and router R4. Both routers should use their loopback interfaces as the BGP router ID.
Which configuration set accomplishes this task?

• A.R3(config)#router bgp 200
  R3(config-router)#neighbor 10.24.24.4 remote-as 100
  R3(config-router)#neighbor 10.24.24.4 update-source Loopback0
  R4(config)#router bgp 100
  R4(config-router)#neighbor 10.24.24.3 remote-as 200
  R4(config-router)#neighbor 10.24.24.3 update-source Loopback0
• B.R3(config)#router bgp 200
  R3(config-router)#neighbor 10.24.24.4 remote-as 100
  R3(config-router)#bgp router-id 10.3.3.3
  R4(config)#router bgp 100
  R4(config-router)#neighbor 10.24.24.3 remote-as 200
  R4(config-router)#bgp router-id 10.4.4.4
• C.R3(config)#router bgp 200
  R3(config-router)#neighbor 10.4.4.4 remote-as 100
  R3(config-router)# neighbor 10.4.4.4 update-source Loopback0
  R4(config)#router bgp 100
  R4(config-router)#neighbor 10.3.3.3 remote-as 200
  R4(config-router)#network 10.3.3.3 update-source Loopback0
• D.R3(config)#router bgp 200
  R3(config-router)#neighbor 10.4.4.4 remote-as 100
  R3(config-router)#bgp router-id 10.3.3.3
  R4(config)#router bgp 100
  R4(config-router)#neighbor 10.3.3.3 remote-as 200
  R4(config-router)#bgp router-id 10.4.4.4

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

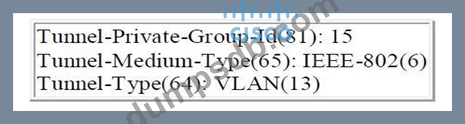

A wireless client is connecting to FlexAP1 which is currently working standalone mode. The AAA authentication processis returning the following AVPs:

Which three behaviors will the client experience? (Choose three.)

• A.While the AP is in standalone mode, the client will be placed in VLAN 15.
• B.While the AP is in standalone mode, the client will be placed in VLAN 10.
• C.When the AP transitions to connected mode, the client will be de-authenticated.
• D.While the AP is in standalone mode, the client will be placed in VLAN 13.
• E.When the AP is in connected mode, the client will be placed in VLAN 13.
• F.When the AP transitions to connected mode, the client will remain associated.
• G.When the AP is in connected mode, the client will be placed in VLAN 15.
• H.When the AP is in connected mode, the client will be placed in VLAN 10.
