Which access controls list allows only TCP traffic with a destination port range of 22-433, excluding port 80?

• A.Deny tcp any any eq 80
  Permit tcp any any gt 21 it 444
• B.Permit tcp any any ne 80
• C.Permit tcp any any range 22 443
  Deny tcp any any eq 80
• D.Deny tcp any any ne 80
  Permit tcp any any range 22 443

Correct Answer: C

Explanation
Although the statement "permit tcp any any gt ... lt ..." seems to be correct but in fact it is not.
Each ACL statement only supports either "gt" or "lt" but not both:

In fact answer 'Permit tcp any any range 22 443
Deny tcp any any eq 80
eq 80.

Comment: *

Name: *

Email: *

Verification: *

Drag and drop the descriptions from the left onto the QoS components they describe on the right.

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

An administrator must enable Telnet access to Router X using the router username and password database for authentication. Which configuration should be applied?
A)

B)

C)

D)

• A.Option A
• B.Option C
• C.Option B
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

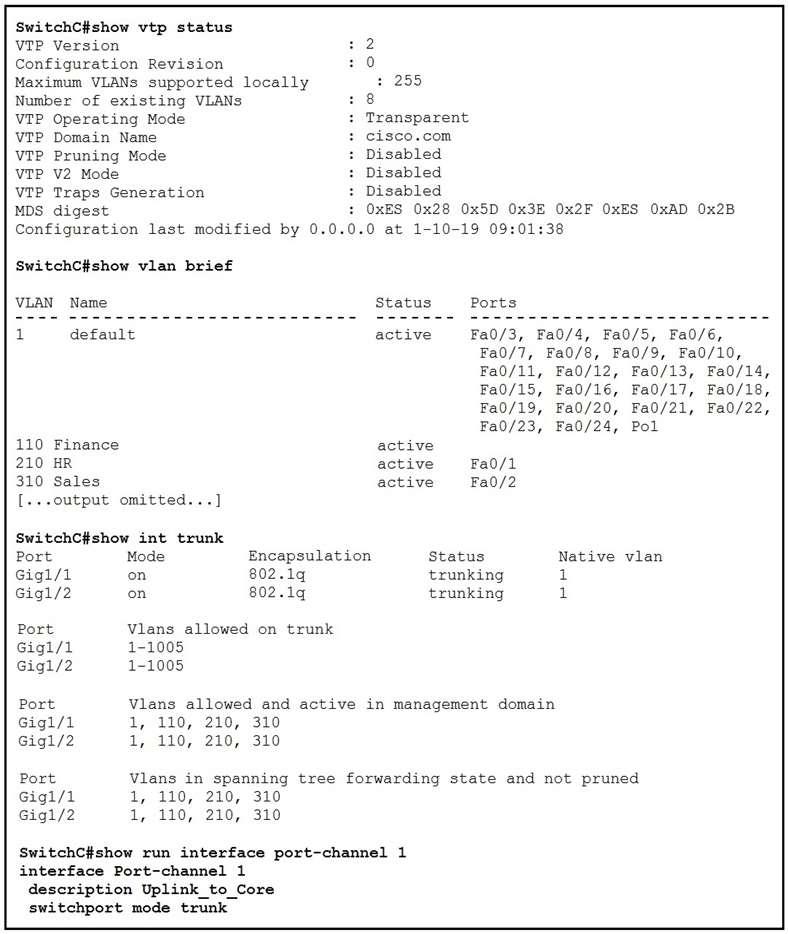

Refer to the exhibit.

SwitchC connects HR and Sales to the Core switch. However, business needs require that no traffic from the Finance VLAN traverse this switch.
Which command meets this requirement?

• A.SwitchC(config)#vtp pruning vlan 110
• B.SwitchC(config)#vtp pruning
• C.SwitchC(config)#interface port-channel 1
  SwitchC(config-if)#switchport trunk allowed vlan add 210,310
• D.SwitchC(config)#interface port-channel 1
  SwitchC(config-if)#switchport trunk allowed vlan remove 110

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Assuming that R is a CE router, which VRF is assigned to Gi0/0 on R1?

• A.VRF VPN_B
• B.Default VRF
• C.Management VRF
• D.VRF VPN_A
