Which method displays text directly into the active console with a synchronous EEM applet policy?

• A.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 gets 'logging directly to console'
• B.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 syslog priority direct msg 'log directly to console'
• C.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 puts 'logging directly to console'
• D.event manager applet boom
  event syslog pattern 'UP'
  action 1.0 string 'logging directly to console'

Correct Answer: B

Explanation
To enable the action of printing data directly to the local tty when an Embedded Event Manager (EEM) applet is triggered, use the action puts command in applet configuration mode.

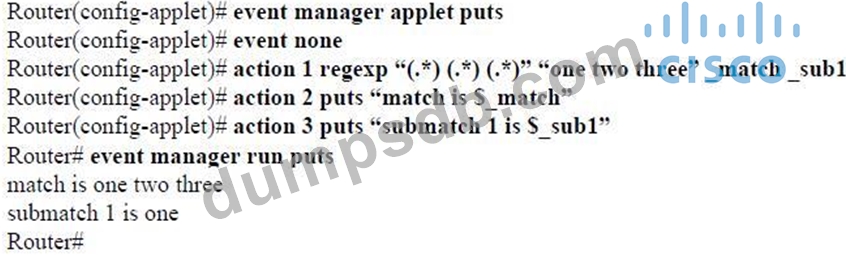

The following example shows how to print data directly to the local tty:

The action puts command applies to synchronous events. The output of this command for a synchronous applet is directly displayed to the tty, bypassing the syslog.
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/eem/command/eem-cr-book/eemcr- a1.html

Comment: *

Name: *

Email: *

Verification: *

What is the responsibility of a secondary WLC?

• A.It shares the traffic load of the LAPs with the primary controller.
• B.It avoids congestion on the primary controller by sharing the registration load on the LAPs.
• C.It registers the LAPs if the primary controller fails.
• D.It enables Layer 2 and Layer 3 roaming between Itself and the primary controller.

Comment: *

Name: *

Email: *

Verification: *

In a traditional 3 tier topology, an engineer must explicitly configure a switch as the root bridge and exclude it from any further election process for the spanning-tree domain. Which action accomplishes this task?

• A.Configure the spanning-tree priority to 32768
• B.Configure root guard and portfast on all access switch ports.
• C.Configure BPDU guard in all switch-to-switch connections.
• D.Configure the spanning-tree priority equal to 0.

Correct Answer: B

Root guard does not allow the port to become a STP root port, so the port is always STP-designated. If a better BPDU arrives on this port, root guard does not take the BPDU into account and elect a new STP root. Instead, root guard puts the port into the root-inconsistent STP state which is equal to a listening state. No traffic is forwarded across this port.

Comment: *

Name: *

Email: *

Verification: *

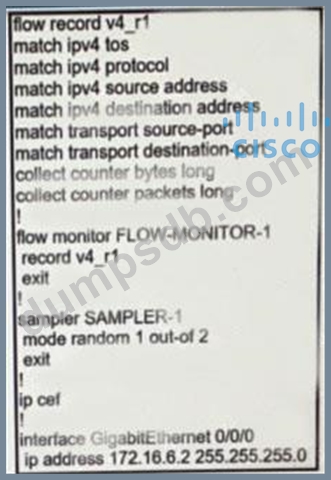

Refer to the exhibit.

Which command set must be added to the configuration to analyze 50 packets out of every 100?

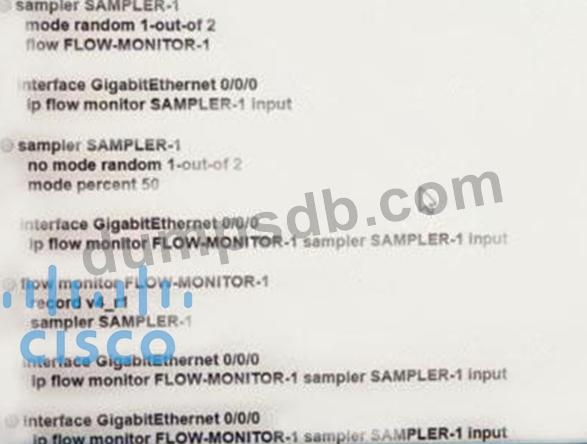

• A.Option B
• B.Option C
• C.Option A
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

An engineer must create an EEM applet that sends a syslog message in the event a change happens in the network due to trouble with an OSPF process. Which action should the engineer use?

• A.action 1 syslog send "OSPF ROUTING ERROR"
• B.action 1 syslog pattern "OSPF ROUTING ERROR"
• C.action 1syslog write "OSPF ROUTING ERROR"
• D.action 1 syslog msg "OSPF ROUTING ERROR"

Comment: *

Name: *

Email: *

Verification: *
