An engineer creates the configuration below. Drag and drop the authentication methods from the left into the order of priority on the right. Not all options are used.

Correct Answer:

Explanation

Comment: *

Name: *

Email: *

Verification: *

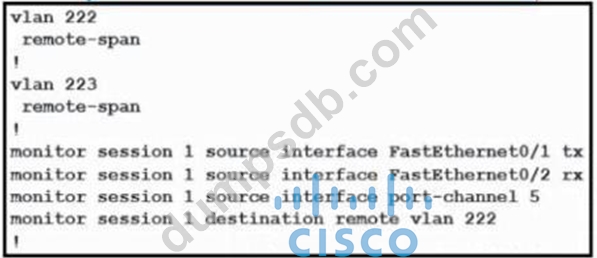

Refer to the exhibit.

These commands have been added to the configuration of a switch. Which command flags an error If It is added to this configuration?

• A.monitor session 1 source interface port-channel 6
• B.monitor session 1 source vlan 10
• C.monitor session 1 source interface FastEthernet0/1 rx
• D.monitor session 1 source interface port-channel 7, port-channel 8

Correct Answer: B

Explanation

RSPAN consists of at least one RSPAN source session, an RSPAN VLAN, and at least one RSPAN destination session. You separately configure RSPAN source sessions and RSPAN destination sessions on different network devices. To configure an RSPAN source session on a device, you associate a set of source ports or source VLANs with an RSPAN VLAN.
Traffic monitoring in a SPAN session has these restrictions: + Sources can be ports or VLANs, but you cannot mix source ports and source VLANs in the same session.
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3750x_3560x/software/release/12-2_55_se/configura Therefore in this question, we cannot configure a source VLAN because we configured source ports for RSPAN session 1 already.

Comment: *

Name: *

Email: *

Verification: *

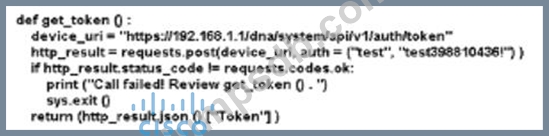

Which HTTP code must be returned to prevent the script form exiting?

• A.201
• B.300
• C.301
• D.200

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

The IP SLA is configured in a router. An engineer must configure an EEM applet to shut down the interface and bring it back up when there is a problem with the IP SLA.
Which configuration should the engineer use?

• A.event manager applet EEM_IP_SLA
  event track 10 state down
• B.event manager applet EEM_IP_SLA
  event track 10 state unreachable
• C.event manager applet EEM_IP_SLA
  event sla 10 state unreachable
• D.event manager applet EEM_IP_SLA
  event sla 10 state down

Comment: *

Name: *

Email: *

Verification: *

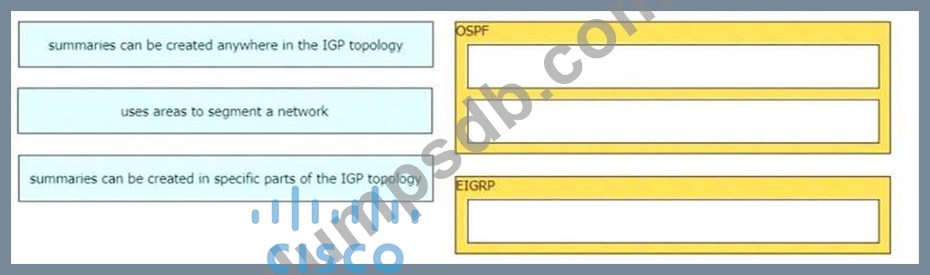

Drag and drop the descriptions from the left onto the routing protocol they describe on the right.

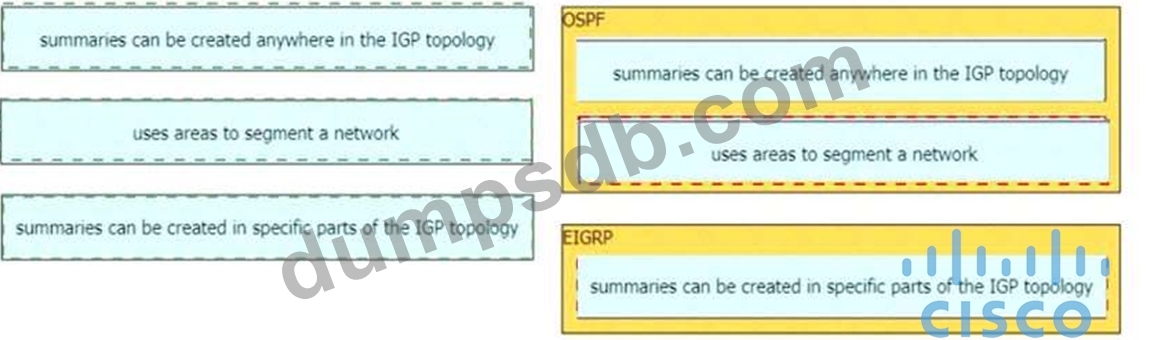

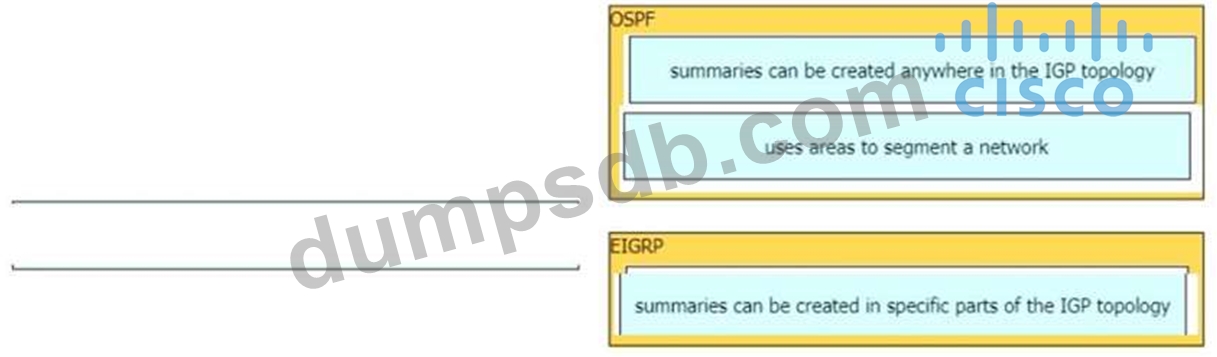

Correct Answer:

Explanation

Comment: *

Name: *

Email: *

Verification: *
