Refer to the exhibit.

An engineer is updating this network to meet these conditions:
* Area 10 will receive inter-area routes and support mutual redistribution of external routes with the extranet.
* The ::/0 route is prohibited in Area 10.
* Area 11 will receive only the ::/0 route from the ABR.
* External route redistribution is not supported in Area 11.
* The ABR in Area 11 will advertise no interarea routes.
Which two configurations must be performed to meet the requirements? (Choose two.)

• A.Configure area 10 as stub on R9 and XR32.
• B.Configure area 11 as nssa default-information-originate on R7 and as nssa on XR31.
• C.Configure area 11 as nssa no-summary on R7 and as nssa on XR31.
• D.Configure area 11 as stub no-summary on R7 and as stub on XR31.
• E.Configure area 10 as nssa on R9 and XR32.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit:

What is significant about the number 2 in the configuration?

• A.It is the numeric name of the ACL that contains the list of SNMP managers with access to the agent
• B.It dictates the number of sessions that can be open with the SNMP manager
• C.It indicates two SNMP managers can read and write with the agent using community string cisco test
• D.It represents the version of SNMP running

Comment: *

Name: *

Email: *

Verification: *

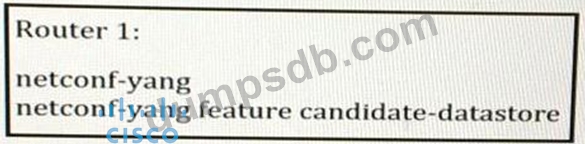

Refer to the exhibit:

Which statement describes this configuration?

• A.Router 1 has a temporary data store where a copy of the running configuration can be manipulated and verified before committing the configuration
• B.Router 1 has its running configuration locked so changes can be made only when the administrator issues a kill session
• C.Router 1 has a new data store to collect SNMP information, but configuration must still be done at the CLI only
• D.Router 1 can be remotely managed by the CLI using Telnet

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit:

Which statement about this configuration is true"?

• A.It requires an explicit Cisco MPLS TE path to be configured for the tunnel to run
• B.It requires a dynamic Cisco MPLS TE path to be configured for the tunnel to run
• C.It requires OSPF to also be running to have optimized Cisco MPLS TE tunnels
• D.It is the configuration for the head-end router of a Cisco MPLS TE tunnel with segment routing

Comment: *

Name: *

Email: *

Verification: *

An engineer is trying to implement BGP in a multihomed architecture. What must the engineer configure to influence inbound path selection?

• A.A route map with AS-PATH attribute to control the inbound traffic
• B.An offset list to set the metric for routes received from neighboring autonomous systems
• C.An access list to identify traffic and enable it on both of the provider-facing interfaces
• D.A route map with WEIGHT attribute to control the inbound traffic
