Question 86
An engineer is setting up overlapping VPNs to allow VRF ABC and XYZ to communicate with VRF CENTRAL but wants to make sure that VRF ABC and XYZ cannot communicate. Which configuration accomplishes these objectives?
Question 87
Refer to the exhibit.
A network engineer is configuring customer edge routers to finalize a L2VPN over MPLS deployment Assume that the AToM L2VPN service that connects the two CEs is configured correctly on the service provider network Which action causes the solution to fail?
Question 88
Refer to the exhibit.

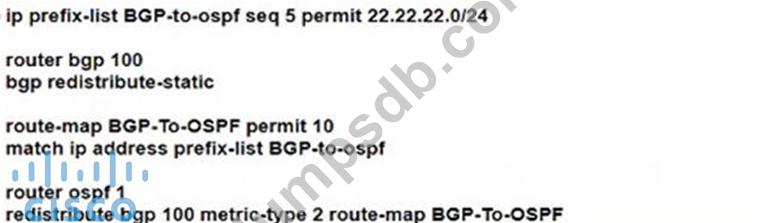

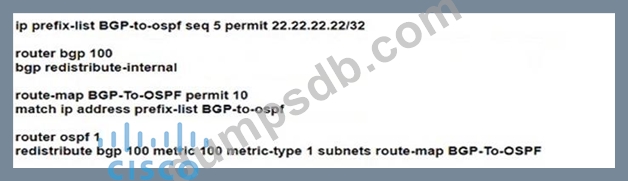

Router 1 and router 2 are running BGP. and router 2 and router 3 are running OSPF Area 0. Router 1 is advertising loopback interlaces Lo 0 and lo 2. and router 2 is redistributing BGP into OSPF Area 0. Which configuration must an administrator apply so that router 2 uses a route map to redistribute only the internal route from Lo 2?
A)
B)
C)
D)
Question 89

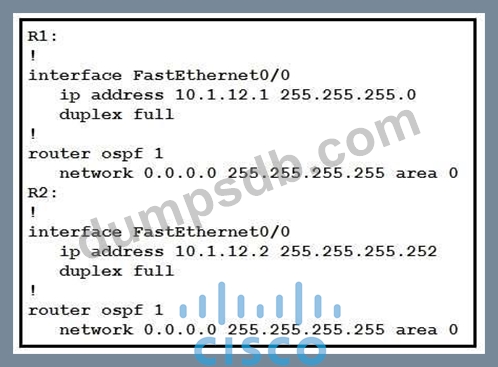

Refer to the exhibit. R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the debug ip ospf hello command is issued on R1, these log messages are seen:
Which command can be configured on routers R1 and R2 on f0/0 interfaces to form OSPF adjacency?
Question 90

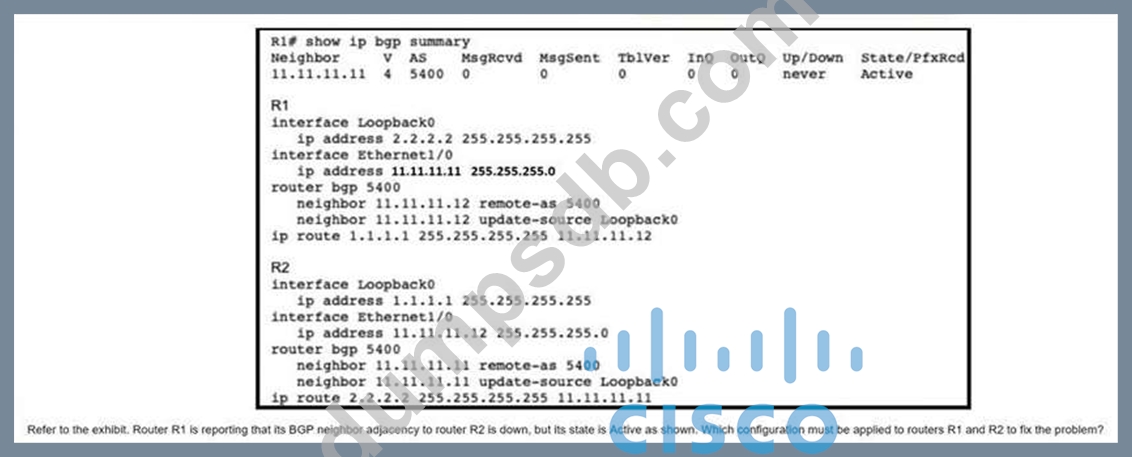

Refer to the exhibit.
Router R1 is reporting that its BGP neighbor adjacency to router R2 is down, but its state is Active as shown.

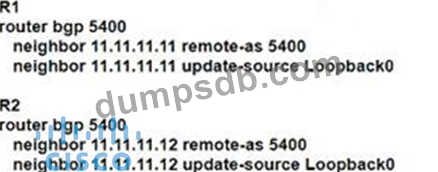

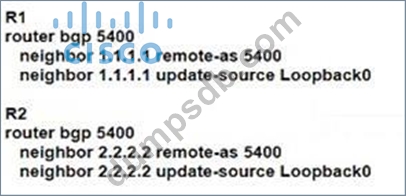

Which configuration must be applied to routers R1 and R2 to fix the problem?
A)
B)
C)
D)
