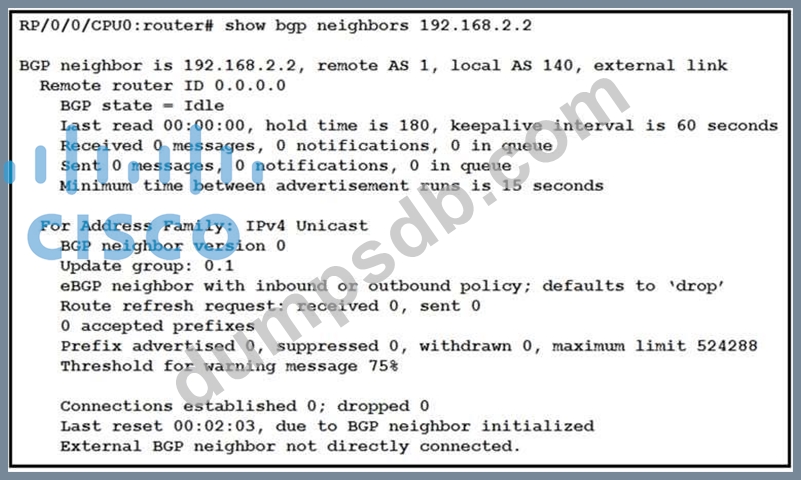

Refer to the exhibit. Based on the show command output, which result is true after BGP session is established?

• A.The IOS XR router advertises and accepts all routes to and from eBGP neighbor 192.168.2.2.
• B.The IOS XR router advertises all routes to the neighbor 192.168.2.2, but it does not accept any routes from
  192.168.2.2.
• C.No routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it.
• D.The IOS XR router does not advertises any routes to the neighbor 192.168.2.2, but it accepts any routes from 192.168.2.2.

Comment: *

Name: *

Email: *

Verification: *

Which BGP attribute i5 used first when determining the best path?

• A.local preference
• B.origin
• C.AS path
• D.weight

Comment: *

Name: *

Email: *

Verification: *

Which two tasks must you perform when you implement LDP NSF on your network? (Choose two.)

• A.Enable NSF for BGP.
• B.Implement direct connections for LDP peers.
• C.Enable NSF for EIGRP.
• D.Disable Cisco Express Forwarding.
• E.Enable NSF for the link-state routing protocol that is in use on the network.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

What does the number 2 mean in the configuration?

• A.It dictates the number of sessions that will be open with the SNMP manager
• B.It indicates two SNMP managers are able to read and write with the agent using community string ciscotest.
• C.It represents the version of SNMP running.
• D.It is the numeric name of the ACL that contains the list of SNMP managers with access to the agent.

Comment: *

Name: *

Email: *

Verification: *

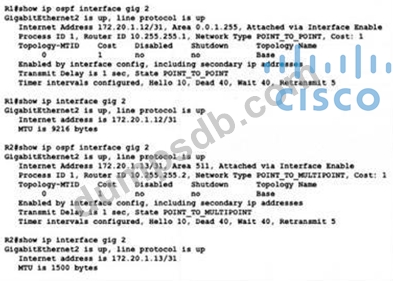

Refer to the exhibit. Which troubleshooting the OSPF adjacency between routers R1 and r2, an engineer noticed that both router and stuck in the EXCHANGE/START. What should the engineer fix to solve the ongoing issue?

• A.match OSPF areas
• B.match MTU values
• C.match IPv4 addresses
• D.match OSPF network types
