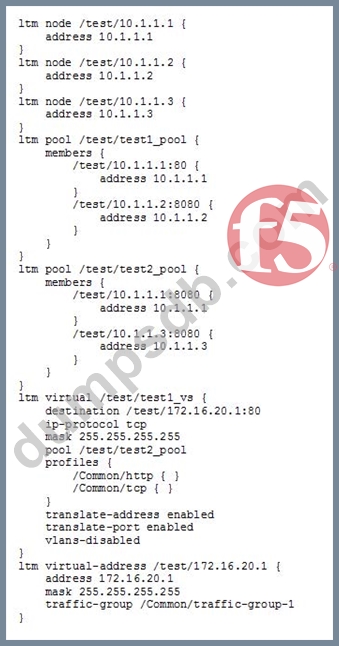

-- Exhibit- -- Exhibit -

Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

• A.delete pool test1_pool, delete pool test2_pool, delete node 10.1.1.3
• B.delete pool test1_pool, delete node 10.1.1.2, delete node 10.1.1.1
• C.delete pool test1_pool, delete node 10.1.1.2
• D.delete node 10.1.1.2, delete pool test2_pool
• E.delete virtual test1_vs, delete pool test2_pool, delete node 10.1.1.1

Comment: *

Name: *

Email: *

Verification: *

The output of a tmsh command is: ------------------------------------------------------------ Net::Interface Name Status Bits Bits Errs Errs Drops Drops Colli In Out In Out In Out sions
------------------------------------------------------------ 1.1 down 0 0 0 0 0 0 0 1.2 up 191.4K 0 0 0 374 0 0 1.3 down 0 0
0 0 0 0 0 1.4 up 22.5K 0 0 0 44 0 0 2.1 miss 0 0 0 0 0 0 0 2.2 miss 0 0 0 0 0 0 0 mgmt up 43.2G 160.0G 0 0 0 0
0
Which command was executed on the LTM device to show the output?

• A.tmsh show /net interface
• B.tmsh /net show interface status
• C.tmsh /net show interface
• D.tmsh show /net interface status

Comment: *

Name: *

Email: *

Verification: *

Users in a branch office are reporting a website is always slow. No other users are experiencing the problem.
The LTM Specialist tests the website from the external VLAN along with testing the servers directly. All tests indicate normal behavior. The environment is a single HTTP virtual server on the external VLAN with a single pool containing three HTTP pool members on the internal VLAN.
Which two locations are most appropriate to collect additional protocol analyzer data? (Choose two.)

• A.the LTM device's external VLAN
• B.a user's machine
• C.a user's Active Directory authentication
• D.the switch local to the user
• E.the LTM device's internal VLAN

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit-

-- Exhibit -
Refer to the exhibit.
The decoded TCPDump capture is a trace of a failing health monitor. The health monitor is sending the string shown in the capture; however, the server response is NOT as expected. The receive string is set to 'SERVER IS UP'.
What is the solution?

• A.The GET request Host header field requires a host name.
• B.The /test_page.html does NOT exist on the web server and should be added.
• C.Incorrect syntax in send string. 'Connection: Close' should be 'Connection: Open'.
• D.Incorrect syntax in send string. 'HTTP/1.1' should be 'HTTP1.1'.

Comment: *

Name: *

Email: *

Verification: *

What is the effect of an iRule error such as referencing an undefined variable?

• A.The connection will continue, but the iRule will NOT be executed again for the lifetime of the connection.
• B.The iRule execution will be terminated, and both the client and server side connections will be reset.
• C.The execution of the current event within the iRule will be terminated.
• D.The iRule execution will continue with the next statement.
