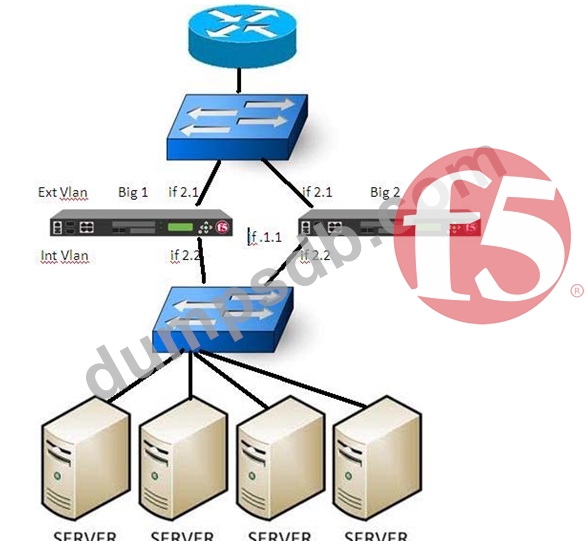

-- Exhibit- -- Exhibit -

Refer to the exhibit.
A failover has just occured on BIG-IP1. BIG-IP2 is now active and manages traffic as expected. Both Bigip's are set with a gateway failsafe to check the reachability of the main border router. Switches have performed as expected.
Where should the LTM Specialist check for potential issues?

• A.Network Interface 1.1 of BIG-IP 2
• B.Network Interface 2.1 of BIG-IP 1
• C.Network Interface 2.1 of BIG-IP 2
• D.Network Interface 1.1 of BIG-IP 1
• E.Network Interface 2.2 of BIG-IP 2
• F.Network Interface 2.2 of BIG-IP 1

Comment: *

Name: *

Email: *

Verification: *

An LTM Specialist realizes that a datacenter engineer has changed the console baud rate.
Which command determines the current baud rate via the command line interface?

• A.tmsh show /ltm console
• B.tmsh show /sys console
• C.tmsh list /sys baud-rate
• D.tmsh list /net baud-rate

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -

-- Exhibit -
Refer to the exhibit.
A pair of LTM devices are deployed in a high-availability (HA) pair as the diagram shows. After inserting a new rule on the firewalls, the LTM devices become Standby. The rule drops all outbound sessions to the Internet. Only inbound connections are allowed from the Internet. There are no other changes to the environment.
What triggered the LTM device failover?

• A.VLAN Failsafe
• B.Auto Failback
• C.HA Group
• D.Gateway Failsafe

Comment: *

Name: *

Email: *

Verification: *

An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request DatE.Tue, 23 Oct 2012 21:39:07 GTM Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4 mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2 Content-LengtH.226 Connection: close Content-TypE.text/html; charset=iso-8859-1
Which issue is the pool member having?

• A.The pool member lacks the object requested by the monitor.
• B.The pool member is NOT accepting requests from the LTM device IP address.
• C.The pool member is rejecting the request because it is invalid.
• D.The pool member has too many concurrent connections.

Comment: *

Name: *

Email: *

Verification: *

A virtual server for a set of web services is constructed on an LTM device. The LTM Specialist has created an iRule and applied this iRule to the virtual server:
when HTTP_REQUEST {
switch [HTTP::uri] {
"/WS1/ws.jsp" {
log local0. "[HTTP::uri]-Redirected to JSP Pool"
pool JSP
}
default { log local0. "[HTTP::uri]-Redirected to Non-JSP Pool"
pool NonJSP
}
}
}
However, the iRule is NOT behaving as expected. Below is a snapshot of the log:
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/WS1/WS.jsp-Redirected to Non-JSP Pool
/ws1/WS.jsp-Redirected to Non-JSP Pool
/WS1/ws.jsp-Redirected to JSP Pool
/ws1/ws.jsp-Redirected to Non-JSP Pool
What is the problem?

• A.The pool members of both pools need to be set up as case-insensitive members.
• B.The "Process Case-Insensitivity" option for the virtual server needs to be selected.
• C.The 'switch' command in the iRule has been used incorrectly.
• D.The condition in the iRule is case sensitive.
