Question 1

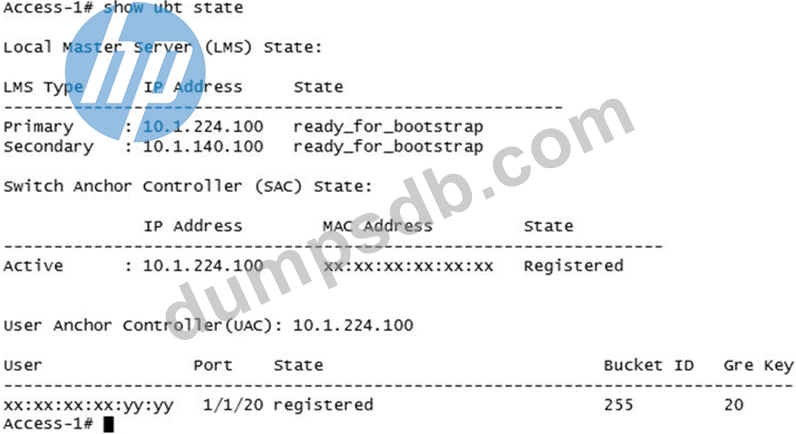

Refer to the exhibit.
Based on the output shown in the exhibit, with which Aruba devices has Access-1 established tunnels?
Question 2

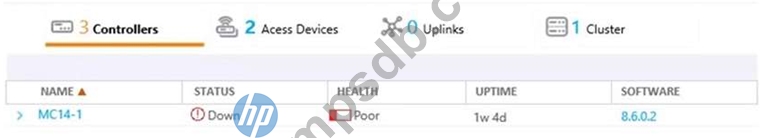

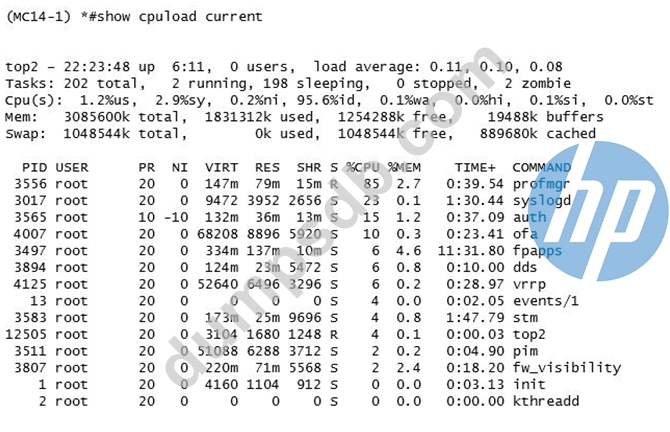

Refer to the exhibits.
Exhibit 1
Exhibit 2
A network administrator adds a new Mobility Controller (MC) to the production Mobility Master (MM) and deploys APs that start broadcasting the employee SSID in the West wing of the building. Suddenly, the employees report client disconnects. When accessing the MM the network administrator notices that the MC is unreachable, then proceeds to access the MC's console and obtains the outputs shown in the exhibits.
What should the network administrator do next to solve the current problem?
Question 3

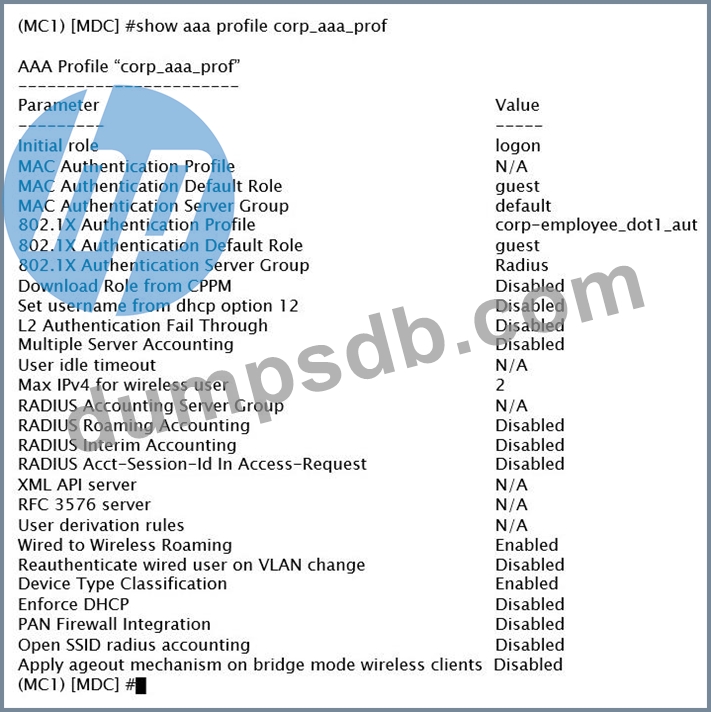

Refer to the exhibit.
A network administrator has created AAA profile for the corporate VAP. In addition to the regular Radius based authentication, the administrator needs to be able to disconnect the users from either of the two servers that are part of the "Radius" server group.
What must the administrator do next in order to achieve this goal?
Question 4

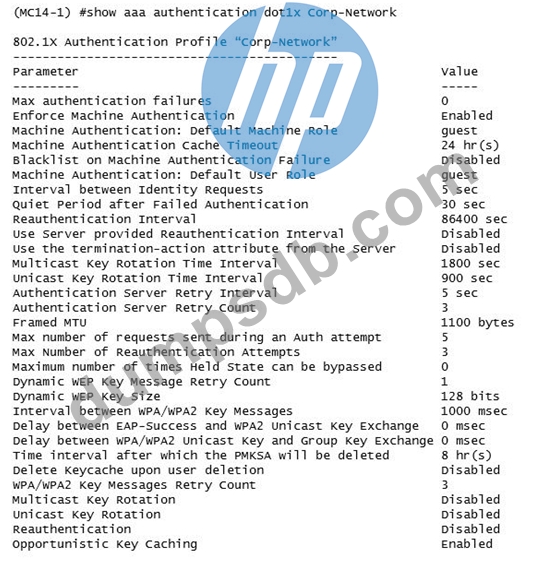

Refer to the exhibit.
The network administrator must ensure that the configuration will force users to authenticate periodically every eight hours. Which configuration is required to effect this change?
Question 5
A network administrator wants to permit explicit SSH, FTP and HHTP(s) access to servers in the 10.100.20.5 to 10.100.20.31 range, all devices in 10.100.21.0/24 network, and a host with IP address 10.100.22.70. The services must work properly at all times.

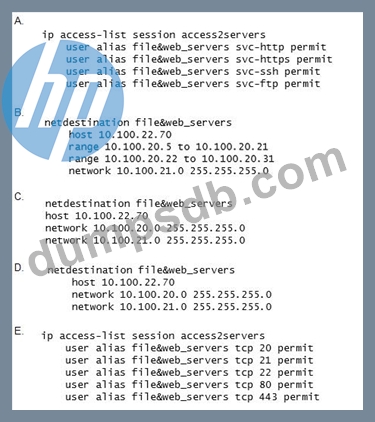

Which configuration scripts accomplish this task with the fewer number of lines, while avoiding access to other devices not included in these ranges? (Choose two.)
