Refer to the exhibits.
Exhibit 1

Exhibit 2

A network administrator integrates a current Mobility Master (MM) - Mobility Controller (MC) deployment with a RADIUS server to authenticate a wireless user, the network administrator realizes that the client machine is not failing into the it_department role, as shown the exhibits.
Which configuration is required to map the users into the proper role, based on standard attributes returned by the RADIUS server in the Access Accept message?

• A.aaa server-group Corp-employee
  set role condition Filter-Id value-of
• B.aaa server-group Corp-employee
  set role condition Filter-Id equals it-role set-value it_department
• C.aaa server-group Corp-Network
  set role condition Filter-Id equals it_department set-value it-role
• D.aaa server-group ClearPass
  set role condition Filter-Id equals it_department set-value it-role
• E.aaa server-group Corp-Network
  set role condition Filter-Id equals it-role set-value it_department

Comment: *

Name: *

Email: *

Verification: *

Users run Skype for Business on wireless clients with no WMM support over an Aruba Mobility Master (MM) - Mobility Controller (MC) based network. When traffic arrives at the wired network, it does not include either L2 or L3 markings.
Which configuration steps should the network administrator take to classify and mark voice and video traffic with UCC heuristics mode?

• A.Confirm the MC is the Openflow controller of the MMs and Openflow is enabled in VAP and firewall roles. Enable Skype4Business ALG in UCC profiles.
• B.Confirm OpenFlow is enabled in the user role and VAP profile. Then enable WMM in a SSID profile, and explicitly permit voice and video UDP ports in a firewall policy.
• C.Confirm MM is the Openflow controller of MCs and Openflow is enabled in VAP and firewall roles. Enable Skype4Business ALG in UCC profiles.
• D.Enable WMM in a VAP profile, and explicitly permit voice and video UDP ports in a firewall policy.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

A network administrator adds a Mobility Controller (MC) in the /mm level and notices that the device does not show up in the managed networks hierarchy. The network administrator accesses the CLI. executes the show switches command, and obtains the output shown in the exhibit.
What is the reason that the MC does not appear as a managed device in the hierarchy?

• A.The digital certificate of the MC is not trusted by the MM.
• B.The IP address of the MC does not match the one that was defined in the MM.
• C.The network administrator has not moved the device into a group yet.
• D.The network administrator added the device using the wrong Pre-Shared Key (PSK).

Comment: *

Name: *

Email: *

Verification: *

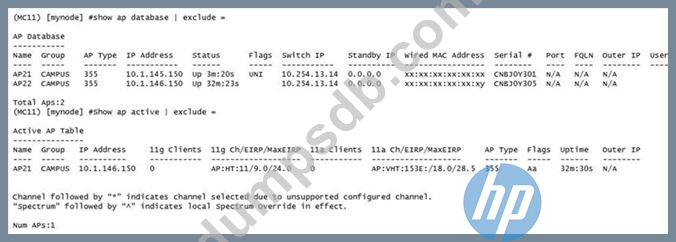

Refer to the exhibit.

A network administrator deploys a new Mobility Master (MM) - Mobility Controller (MC) network. To test the solution, the network administrator accesses the console of a pair of APs and statically provisions them. However, one of the APs does not propagate the configured SSIDs. The network administrator looks at the logs and sees the output shown in the exhibit.
Which actions must the network administrator take to solve the problem?

• A.Create another AP group in the MC's configuration, and re-provision one AP with a different group.
• B.Re-provision one of the APs with a different name, and add new entries with the proper group in the whitelist.
• C.Re-provision the AP with a different group, and modify the name of one AP in the whitelist.
• D.Re-provision one of the APs with a different name or modify the name in the whitelist.

Comment: *

Name: *

Email: *

Verification: *

Users run encrypted Skype for Business traffic with no WMM support over an Aruba Mobility Master (MM) - Mobility Controller (MC) based network. When voice, video, and application sharing traffic arrive at the wired side of the network, all the flows look alike due to the lack of L2 and L3 markings How can the network administrator identify these flows and mark QoS accordingly?

• A.Confirm the MC is the Openflow controller of the MMs and Openflow is enabled in VAP and the firewall roles. Then enable WMM in a VAP profile.
• B.Use a media firewall policy that match these three flows, and use permit and TOS actions with 56, 40, and 34 values for voice, video, and application sharing, respectively Then enable the Skype4Business ALG in the UCC profiles.
• C.Confirm the MC is the Openflow controller of the MMs and Openflow is enabled in VAP and the firewall roles. Then enable the Skype4Business ALG in the UCC profiles.
• D.Confirm the MM is the Openflow controller of the MCs and Openflow is enabled in VAP and the firewall roles. Then integrate the MM with the Skype4Business SDN API. and enable the Skype4Business ALG in the UCC profiles.
