Question 82

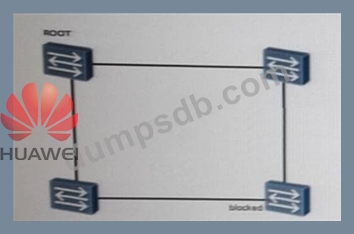

As shown in the figure, all four switches run STP, and each parameter adopts the default value.
When a port on the root switch is blocked and cannot be sent through the port, how long will the port in the network enter the forwarding state?
Question 83

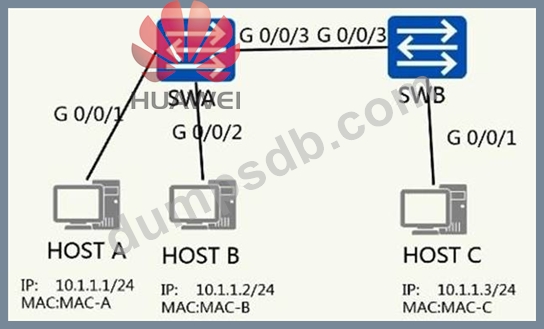

As shown in the following figure, all hosts can communicate normally. What is the correct relationship between the SWBMAC address and the port?
Question 84
Which of the following statements regarding Designated Routers in OSPF are correct? (Multiple Choice)
Question 85
A client failed to transfer a file to the FTP server, but found the IP connectivity was without
problem. The client assumed that the problem was with the port configuration. The blocking of
which ports would likely cause this problem? (Multiple Choice)
Question 86
Segment Routing encodes the segment sequence representing the forwarding path in the packet header. As the packet is transmitted, the receiver parses the segment sequence after receiving the packet. If the top segment identifier of the segment sequence is the local node, the identifier is displayed, and then the next step is processed. If it is not the local node, the packet is forwarded to the next node by using the ECMP (Equal Cost Multiple Path) mode.
