Which of the following IPv6 addresses has a Solicited-node multicast address of FF02::1:FF12:1?

• A.2019::12:1
• B.2020::1200:1
• C.2020::12AB:1
• D.2019::12:1000

Comment: *

Name: *

Email: *

Verification: *

Which of the following steps are necessary to configure OSPF on a Huawei router? (Multiple Choice)

• A.Specifying an OSPF area.
• B.Enabling of an OSPF process
• C.Configuration of the network segments within each area.
• D.Configuration of a router ID.

Comment: *

Name: *

Email: *

Verification: *

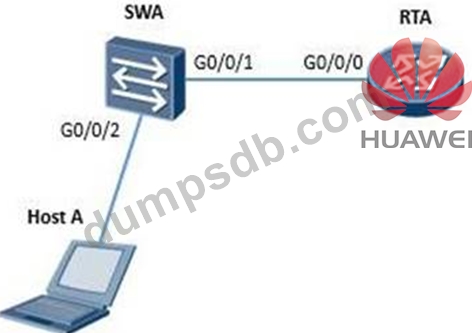

Refer to the graphic.

A host has established a telnet connection with the router attached to interface G0/0/0.
Which of the following statements are correct? (Multiple Choice)

• A.The destination MAC address of a frame sent by the host will be the MAC address of the router interface G0/0/0.
• B.The destination IP address of a packet sent by the host will be the IP address of the Router interface G0/0/0.
• C.The destination port number in a segment header will have a value of 80.
• D.The destination MAC address of a frame sent by the host will be the MAC address of the switch.

Comment: *

Name: *

Email: *

Verification: *

In the VRP system, what are the functions of Ctrl+Z? (Multiple Choice)

• A.Exit from the current view.
• B.Exit from the interface view.
• C.Return to the user view.
• D.Return from the system view to the user view.
• E.Exit from the console interface view.

Comment: *

Name: *

Email: *

Verification: *

The following election statement about DR and BDR, which is correct? (Muitiple choice)

• A.If the priorities are the same, the router ID is compared. The larger the value, the higher the priority is elected as the DR.
• B.DR must exist in the broadcast network
• C.If an interface has a priority of 0, the interface will not participate in the election of DR or BDR.
• D.BDR must exist in the broadcast network
