In a broadcast address, all host bits are set to 1 and a broadcast address can be used as a host address.

• A.FALSE
• B.TRUE

Comment: *

Name: *

Email: *

Verification: *

To provide the information about the IP addresses that a user packet traverses along the path to the destination, which of the following does Tracert record in each expired ICMPTTL packet?

• A.Destination port.
• B.Destination IP address.
• C.Source port.
• D.Source IP address.

Comment: *

Name: *

Email: *

Verification: *

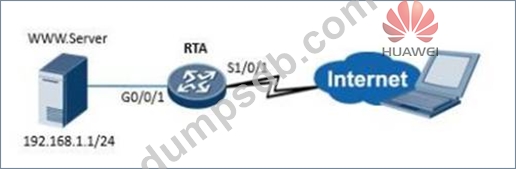

Refer to the graphic. A web server in a private network is required to provide HTTP services to public users. The network administrator is required to configure NAT on RTA. Which configuration should be used?

• A.[RTA-Serial0/0/l]nat server protocol tcp global 192.168.1.1 www inside 202.10.10.1 8080
• B.[RTA- Gigabitethernet0/0/l]nat server protocol tcp global 192.168.1.1 www inside 202.10.10.1 8080
• C.[RTA-Seriall/0/l]nat server protocol tcp global 202.10.10.1 www inside 192.168.1.1 8080
• D.[RTA-Gigabitethernet0/0/l]nat server protocol tcp global 202.10.10.1 www inside 192.168.1.1 8080

Comment: *

Name: *

Email: *

Verification: *

The DHCP server function is enabled on an interface of the router. Which of the following IP addresses may the DHCP client obtain?
interface GigabitEthernet0/0/1
ip address 11.0.1.1 255.255.255.0
dhcp select interface
dhcp server excluded-ip-address 11.0.1.2 11.0.1.127
#

• A.11.0.1.100
• B.11.0.1.1
• C.11.0.1.255
• D.11.0.1.254

Comment: *

Name: *

Email: *

Verification: *

[Huawei]user-interface vty 0 14
[Huawei-ui-vty0-14] ac1 2000 inbound
[Huawei-ui-vty0-14] user privilege level 3
[Huawei-ui-vty0-14] authentication-mode password
Please configure the login password (maximum length 16): Huawei
The configuration of vty is as shown above, and the user privilege level is set to level 3.

• A.True
• B.False
