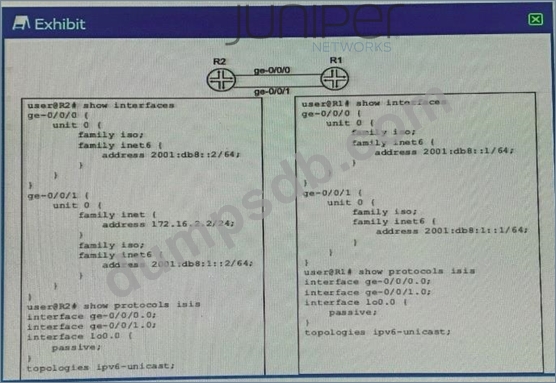

Exhibit:

A network administrator is migrating from IPv4 to IPv6 and one of the IS-IS adjacencies is not coming up between R1 and R2.
Which action will solve the problem?

• A.Configure an IPv4 address on interface ge-0/0/1 on R1.
• B.Remove topologies ipv6-unicast from protocols isis on R1.
• C.Configure topologies ipv4-unicast from protocols isis on R2.
• D.Remove topologies ipv6-unicast from protocols isis on R2.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

Referring to the exhibit, which two statements are correct? (Choose two.)

• A.The OSPF interface metrics on R2 are all set to 65535.
• B.R2 stops sending LSAs into the network.
• C.R1 will never forward transit traffic through R2.
• D.Transit traffic from R1 to R4 will traverse R3.

Comment: *

Name: *

Email: *

Verification: *

You have a Layer 3 VPN established between PE-1 and PE-2 to allow communication between CE-1 and CE-2.
Referring to the exhibit, which statement is correct?

• A.You will need a VRF import policy on PE-1 to advertise the BGP routes, learned from CE-1, through the Layer 3 VPN.
• B.You will need a BGP export policy on PE-1 to redistribute the routes, learned from CE-1, through the Layer 3 VPN.
• C.You will need an OSPF import policy on PE-1 to receive the BGP routes, learned from PE-2, through the Layer 3 VPN.
• D.You will need an OSPF export policy on PE-2 to redistribute the BGP routes, learned from PE-1, through the Layer 3 VPN.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

R1 assigns incoming voice traffic to the ef forwarding class. All other traffic is assigned to the best-effort forwarding class You have configured a CoS re-write rule on R1 to include the correct CoS bit values in packets sent towards R2 You want R2 to classify traffic using the CoS markings created by R1.
Which two configuration steps are necessary to accomplish this task? (Choose two.)

• A.Configure a CoS re-write rule on R2 and assign matching CoS values.
• B.Assign the CoS re-write rule to the ge-0/0/1.0 interface on R2.
• C.Assign the behavior aggregate classifier to the ge-0/0/1.0 interface on R2.
• D.Configure a behavior aggregate classifier on R2.

Comment: *

Name: *

Email: *

Verification: *

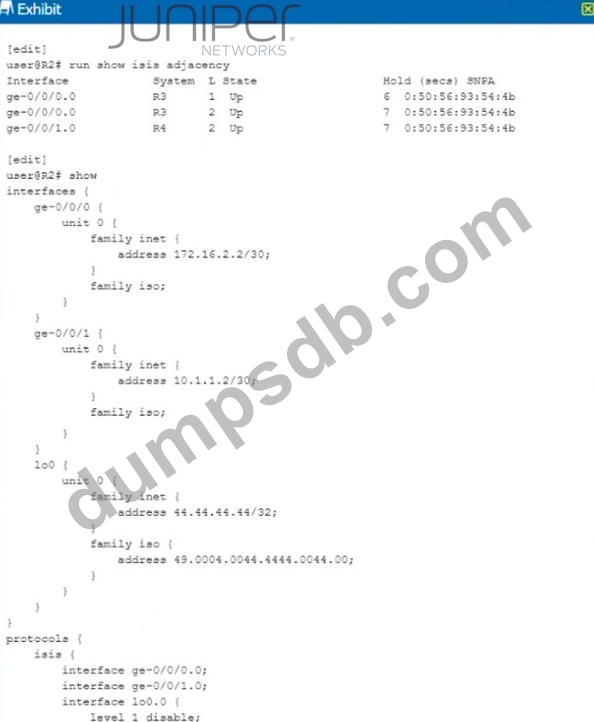

Exhibit.

R2 has IS-IS adjacencies with R3 and R4 You want to ensure that R2 has both a level 1 and level 2 adjacency to both R3 and R4 but R2 only has one adjacency with R4.
Referring to the exhibit, which configuration change will solve this issue?

• A.Remove the level 1 disable configuration from R4
• B.Change the IS-IS area on R2 to match R4.
• C.Remove the level 1 disable configuration from R2
• D.Change the IS-IS area on R4 to match R2
