Which OSPFv3 LSA is similar to the OSPFv2 Type 5 LSA?

• A.AS External
• B.Intra-Area Prefix
• C.Inter-Area Prefix
• D.Inter-Area Router

Comment: *

Name: *

Email: *

Verification: *

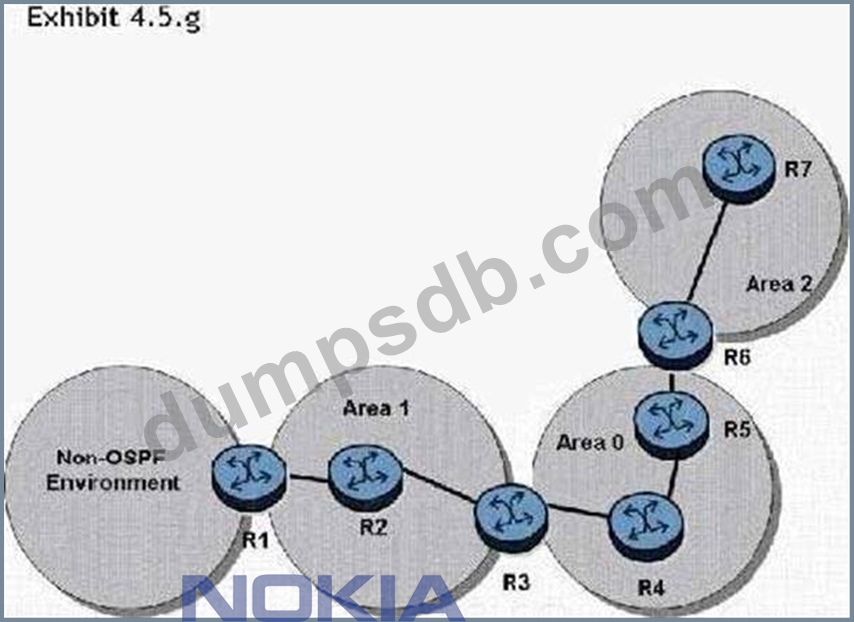

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF.
Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?

• A.Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.
• B.Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.
• C.Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
• D.Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

Comment: *

Name: *

Email: *

Verification: *

Which of the following about CSPF is TRUE?

• A.CSPF calculations are always performed on RSVP-TE based LSPs.
• B.The head-end router performs the CSPF calculation for an LSP.
• C.Each downstream router performs its own CSPF calculation for an LSP.
• D.The tail-end router performs the CSPF calculation for an LSP.

Comment: *

Name: *

Email: *

Verification: *

An E-pipe is configured with a service MTU 0.
What MTU value should be set on the access port for a Q-in-Q encapsulated SAP?

• A.5004
• B.5000
• C.5008
• D.5018

Comment: *

Name: *

Email: *

Verification: *

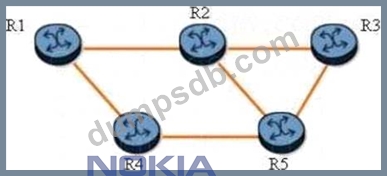

Click on the exhibit.

An LSP traverses the path R1-R2-R3. With one-to-one fast reroute enabled, which router becomes a DMP for the detour tunnels?

• A.Router R5
• B.Router R1
• C.Router R4
• D.Router R2
• E.Router R3

Comment: *

Name: *

Email: *

Verification: *
