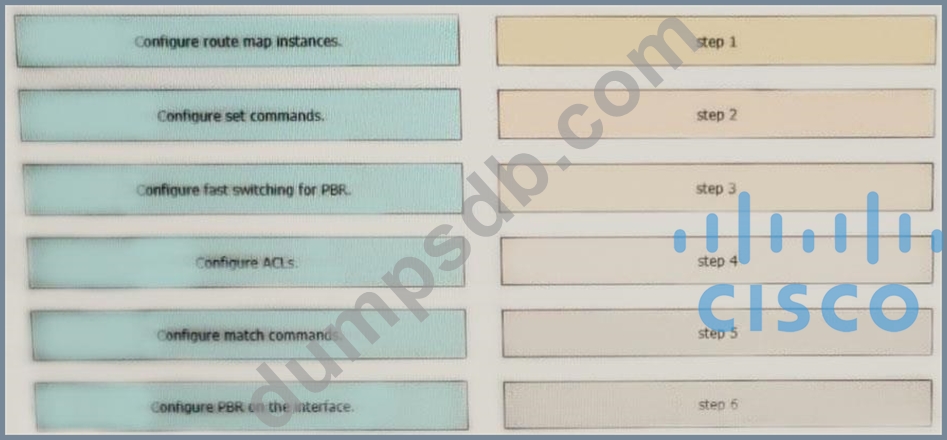

Drag and drop the actions from the left into the correct order on the right to configure a policy to avoid following packet forwarding based on the normal routing path.

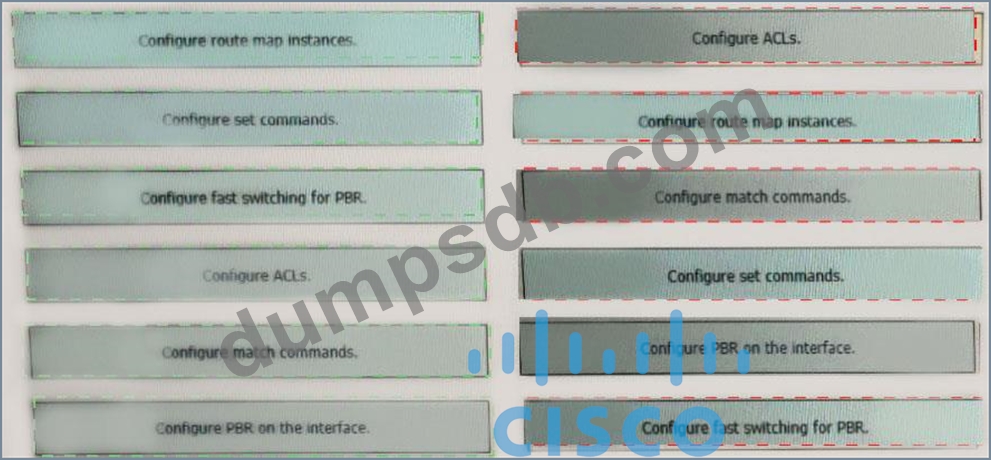

Correct Answer:

Explanation

https://community.cisco.com/t5/networking-documents/how-to-configure-pbr/ta-p/3122774

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An engineer must configure a LAN-to-LAN IPsec VPN between R1 and the remote router. Which IPsec Phase 1 configuration must the engineer use for the local router?

• A.crypto isakmp policy 5authentication pre-shareencryption 3deshash shagroup 2!crypto isakmp key cisco123 address 200.1.1.3
• B.crypto isakmp policy 5authentication pre-shareencryption 3deshash md5group 2!crypto isakmp key cisco123 address 200.1.1.3
• C.crypto isakmp policy 5authentication pre-shareencryption 3deshash md5group 2!crypto isakmp key cisco123 address 199.1.1.1
• D.crypto isakmp policy 5authentication pre-shareencryption 3deshash md5group 2!crypto isakmp key cisco123! address 199.1.1.1

Comment: *

Name: *

Email: *

Verification: *

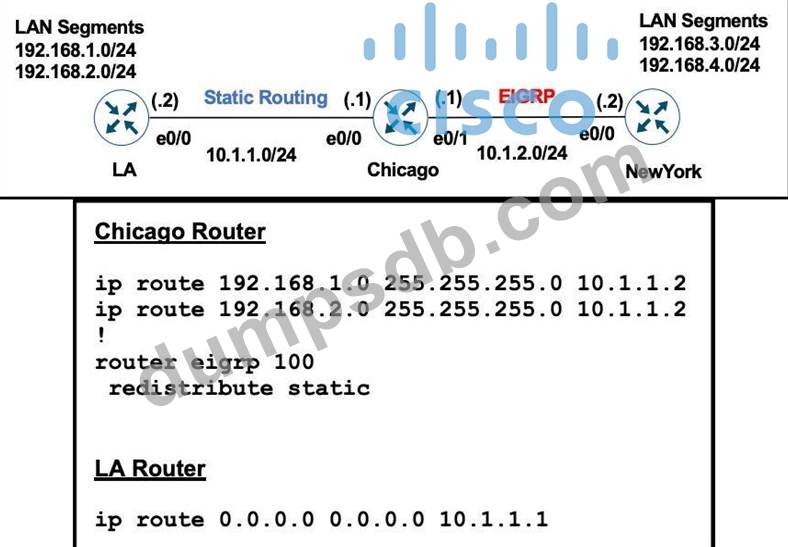

question: 140 Refer to the exhibits.

A user on the 192.168.1.0/24 network can successfully ping 192.168.3.1, but the administrator cannot ping
192.168.3.1 from the LA router. Which set of configurations fixes the issue?
A)

B)

C)

D)

• A.Option C
• B.Option A
• C.Option D
• D.Option B

Comment: *

Name: *

Email: *

Verification: *

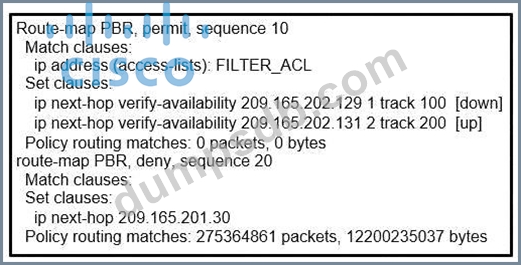

Refer to the exhibit.

An engineer has configured policy-based routing and applied the configured to the correct interface. How is the configuration applied to the traffic that matches the access list?

• A.It is sent to 209.165.202.131.
• B.It is sent to 209.165.202.129.
• C.It is dropped.
• D.It is forwarded using the routing table lookup.

Comment: *

Name: *

Email: *

Verification: *

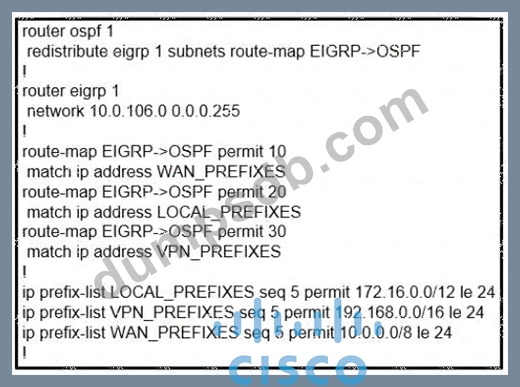

Refer to the exhibit.

The network administrator configured redistribution on an ASBR to reach to all WAN networks but failed Which action resolves the issue?

• A.The route map must have the keyword prefix-list to evaluate the prefix list entries
• B.The OSPF process must have a metric when redistributing prefixes from EIGRP.
• C.The route map EIGRP->OSPF must have the 10.0.106.0/24 entry to exist in one of the three prefix lists to pass
• D.EIGRP must redistribute the 10.0.106.0/24 route instead of using the network statement
