Question 106
LAB SIMULATION 3
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
* Refer to the Tasks tab to view the tasks for this lab item.
* Refer to the Topology tab to access the device console(s) and perform the tasks.
* Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
* All necessary preconfigurations have been applied.
* Do not change the enable password or hostname for any device.
* Do not replace existing routing policies or configurations.
* Save your configurations to NVRAM before moving to the next item.
* Click Next at the bottom of the screen to submit this lab and move to the next question.
* When Next is clicked, the lab closes and cannot be reopened.

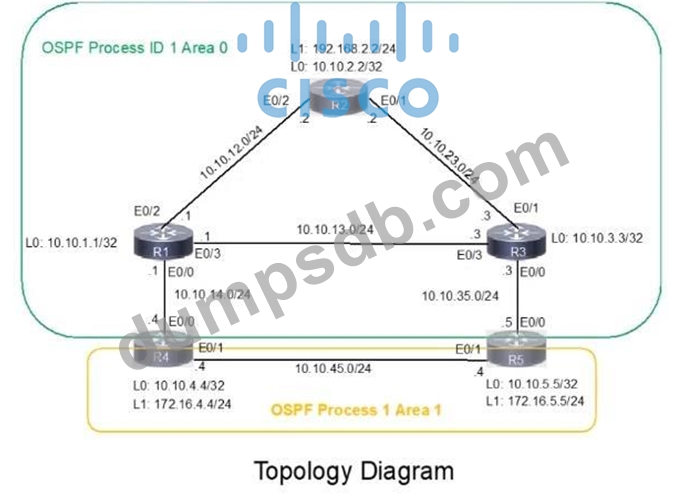

Topology
Tasks

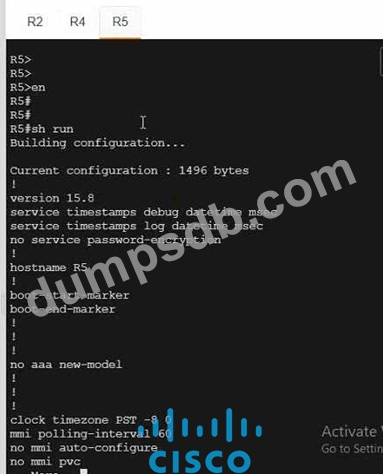

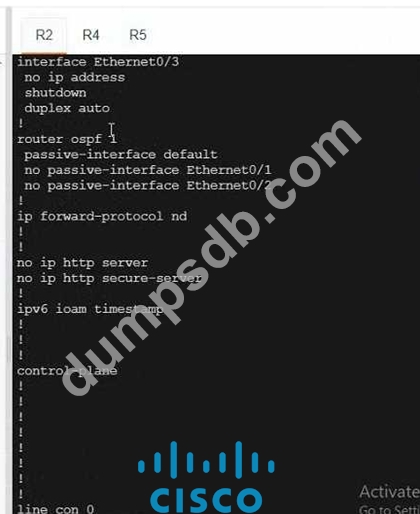

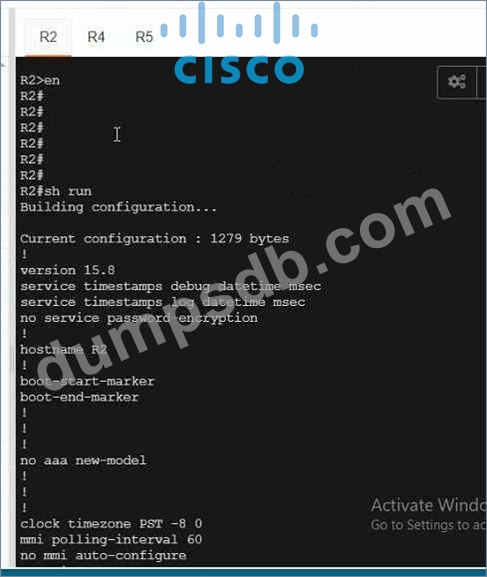

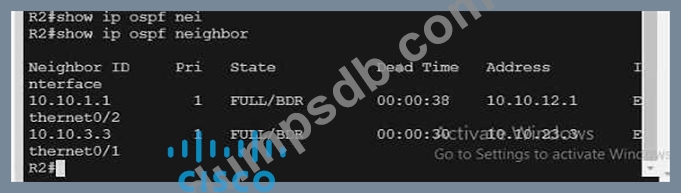

A network is configured with IP connectivity, and the routing protocol between devices started having problems right after the maintenance window to implement network changes.
Troubleshoot and resolve to a fully functional network to ensure that:

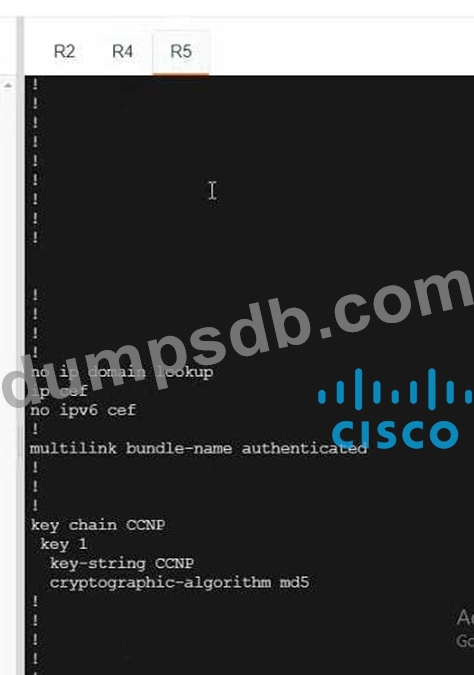

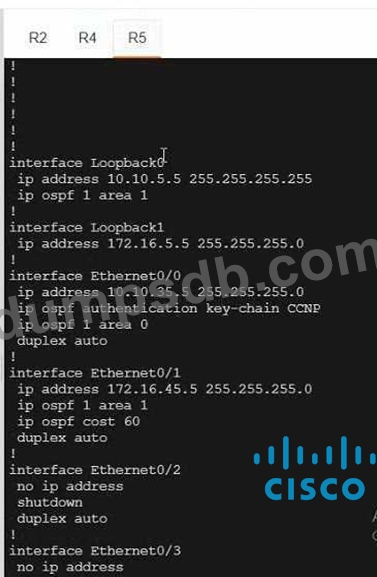

1. Inter-area links have link authentication (not area authentication) using MD5 with the key 1 string CCNP.
2. R3 is a DR regardless of R2 status while R1 and R2 establish a DR/BDR relationship.
3. OSPF uses the default cost on all interfaces. Network reachability must follow OSPF default behavior for traffic within an area over intra-area VS inter-area links.

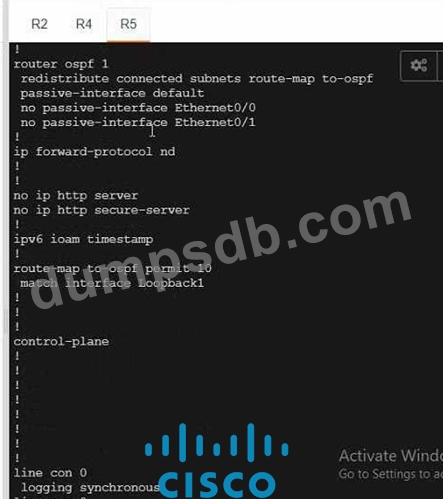

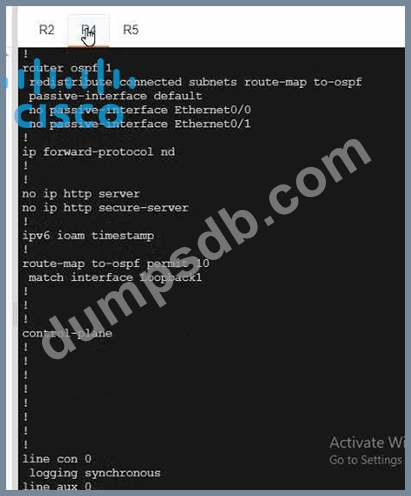

4. The OSPF external route generated on R4 adds link cost when traversing through the network to reach R2. A network command to advertise routes is not allowed.
R4
R5
Question 107
Refer to the exhibit.

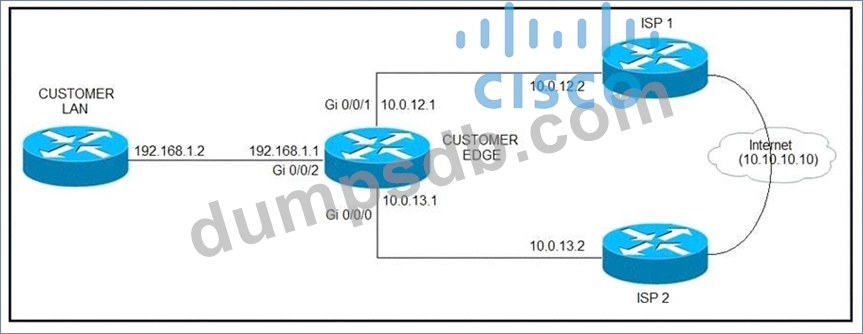

ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?
Question 108
Refer to the exhibit.
When monitoring an IPv6 access list, an engineer notices that the ACL does not have any hits and is causing unnecessary traffic to pass through the interface Which command must be configured to resolve the issue?
Question 109
Which three protocols or protocol combinations does Management Plane Protection (MPP) support? (Choose three.)
Question 110
Refer to the exhibit.
During troubleshooting it was discovered that the device is not reachable using a secure web browser. What is needed to fix the problem?
