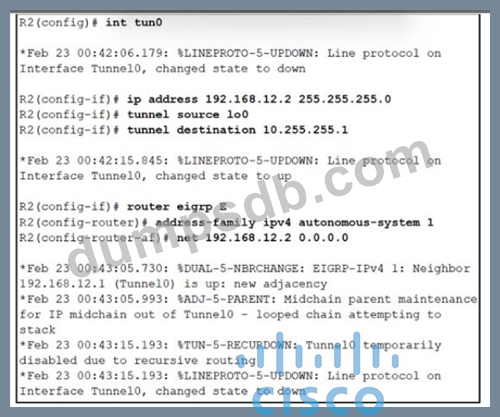

Refer to the exhibit.

An administrator is configuring a GRE tunnel to establish an EIGRP neighbor to a remote router. The other tunnel endpoint is already configured. After applying the configuration as shown, the tunnel started flapping. Which action resolves the issue?

• A.Stop sending a route matching the tunnel destination across the tunnel.
• B.Advertise the Loopback0 interface from R2 across the tunnel.
• C.Modify the network command to use the Tunne10 Interface netmask.
• D.Readdress the IP network on the Tunne10 on both routers using the /31 netmask.

Comment: *

Name: *

Email: *

Verification: *

What does IPv6 Source Guard utilize to determine if IPv6 source addresses should be forwarded?

• A.ACE
• B.ACLS
• C.DHCP
• D.Binding Table

Correct Answer: D

Comment: *

Name: *

Email: *

Verification: *

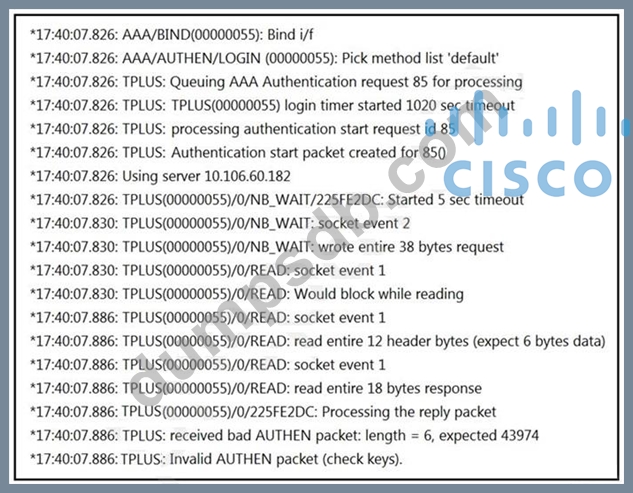

Refer to the exhibit.

An engineer is troubleshooting a TACACS problem.
Which action resolves the issue?

• A.Configure a matching TACACS server IP.
• B.Configure a matching preshared key.
• C.Generate authentication from a relative source interface.
• D.Apply a configured AAA profile to the VTY.

Comment: *

Name: *

Email: *

Verification: *

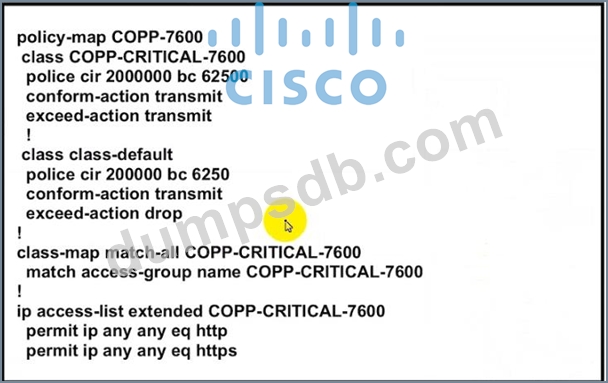

Refer to the exhibit.

BGP is flapping after the Copp policy is applied. What are the two solutions to fix the issue?
(Choose two)

• A.Configure BGP in the COPP-CRITICAL-7600 ACL
• B.Configure a higher value for CIR under the default class to allow more packets during peak traffic
• C.Configure a higher value for CIR under the class COPP-CRITICAL-7600
• D.Configure a three-color policer instead of two-color policer under class COPP-CRITICAL-
  7600
• E.Configure IP CEF to CoPP policy and BGP to work

Comment: *

Name: *

Email: *

Verification: *

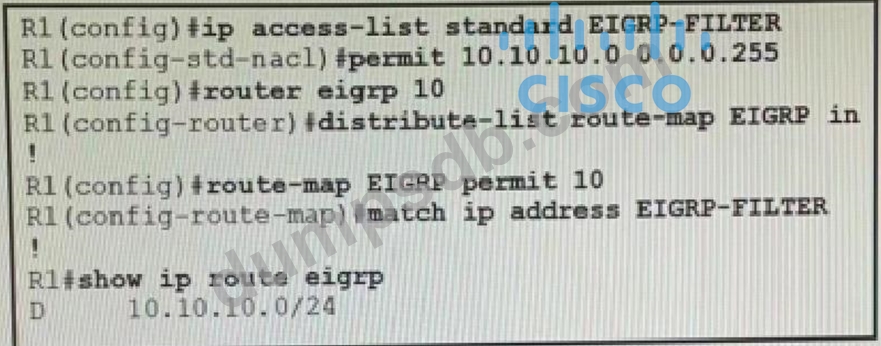

Refer to the exhibit.

An engineer must filter incoming EIGRP updates to allow only a set of specific prefixes. The distribute list is tested, and it filters out all routes except network 10.10.10.0/24. How should the engineer temporarily allow all prefixes to be learned by the routers again without adjusting the existing access list?

• A.A continue statement should be added within the permit 10 statement before completing the ACL with the required prefixes, and then the continue statement can be removed.
• B.An extended access list must be used instead of a standard access list to accomplish the task
• C.A permit any statement should be added before completing the ACL with the required prefixes and then the permit any statement can be removed.
• D.A permit 20 statement should be added before completing the ACL with the required prefixes, and then the permit 20 statement can be removed.
