Refer to the exhibit.

An engineer configures DMVPN and receives the hub location prefix of 10.1.1.0724 on R2 and R3 The R3 prefix of 10 1.3.0/24 is not received on R2. and the R2 prefix 10.1,2.0/24 is not received on R3. Which action reserves the issue?

• A.Split horizon prevents the routes from being advertised between spoke routers it should be disabled with the command no ip split-horizon eigrp 10 on the tunnel interface of R1
• B.There is no spoke-to-spoke connection DMVPN configuration should be modified to enable a tunnel connection between R2 and R3 and neighbor relationship confirmed by use of the show ip eigrp neighbor command
• C.Split horizon prevents the routes from being advertised between spoke routers it should be disabled with the no ip split-horizon eigrp 10 command on the Gi0/0 interface of R1.
• D.There is no spoke-to-spoke connection DMVPN configuration should be modified with a manual neighbor relationship configured between R2 and R3 and confirmed bb use of the show ip eigrp neighbor command.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1. What are the two solutions to fix the problem? (Choose two.)

• A.Filter RIP routes back into RIP when redistributing into RIP in R2
• B.Filter OSPF routes into RIP FROM EIGRP when redistributing into RIP in R2.
• C.Filter all routes except RIP routes when redistributing into EIGRP in R2.
• D.Filter RIP AND OSPF routes back into OSPF from EIGRP when redistributing into OSPF in R2
• E.Filter all routes except EIGRP routes when redistributing into OSPF in R3.

Comment: *

Name: *

Email: *

Verification: *

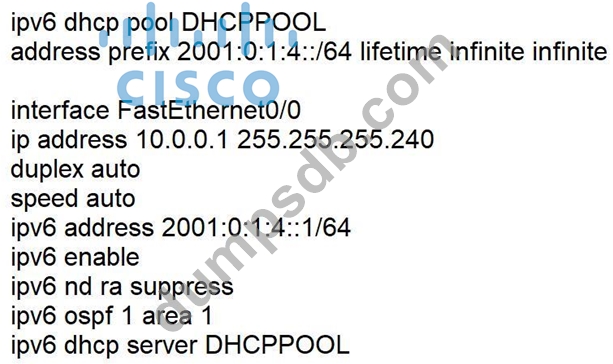

Refer to the exhibit.

Reachability between servers in a network deployed with DHCPv6 is unstable. Which command must be removed from the configuration to make DHCPv6 function?

• A.ipv6 nd ra suppress
• B.ipv6 address 2001:0:1:4::/64
• C.ipv6 dhcp server DHCPPOOL
• D.address prefix 2001:0:1:4::/64 lifetime infinite infinite

Comment: *

Name: *

Email: *

Verification: *

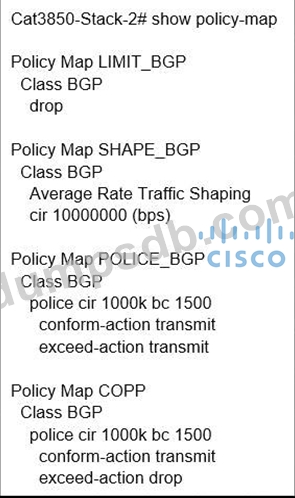

Refer to the exhibit.

Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and ignores BGP traffic that is sent at higher rate?

• A.policy-map LIMIT_BGP
• B.policy-map SHAPE_BGP
• C.policy-map COPP
• D.policy-map POLICE_BGP

Comment: *

Name: *

Email: *

Verification: *

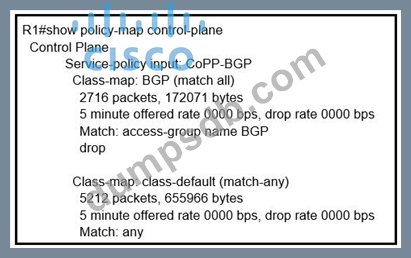

Refer to the exhibit.

What is the result of applying this configuration?

• A.The router can form BGP neighborships with any other device.
• B.The router cannot form BGP neighborships with any other device.
• C.The router cannot form BGP neighborships with any device that is matched by the access list named
  "BGP".
• D.The router can form BGP neighborships with any device that is matched by the access list named
  "BGP".

Comment: *

Name: *

Email: *

Verification: *
