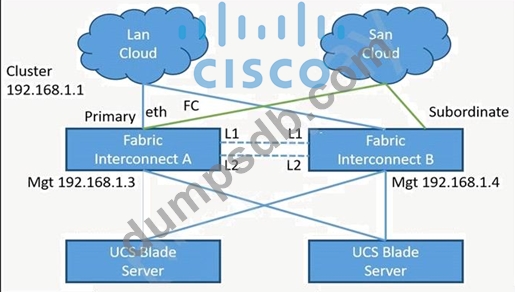

Refer to the exhibit.

A network engineer finds one of the fabric interconnects offline when connecting L1 and L2 ports on both fabric interconnects. Which action resolves the issue?

• A.1. Connect to Fabric Interconnect A.
  2. Verify the cluster status and HA election.
  3. Validate Fabric Interconnect A hardware issues.
• B.1. Connect Fabric Interconnect B and change the role to primary.
  2. Reboot Fabric Interconnect B.
  3. Add the Fabric Interconnect A as subordinate fabric to the cluster.
• C.1. Connect to Fabric Interconnect B.
  2. Verify the cluster status and HA election.
  3. Validate Fabric Interconnect B hardware issues.
• D.1. Connect Fabric Interconnect B and execute "Erase configuration"
  2. Reboot Fabric Interconnect B.
  3. Add the subordinate Fabric Interconnect to the cluster.

Comment: *

Name: *

Email: *

Verification: *

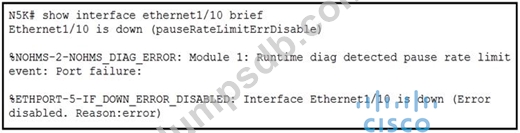

Refer to the exhibit. A network engineer is troubleshooting a Cisco Nexus 5000 Series Switch. The interface between the server and the switch is nonoperational and is expected to operate at 10 Gbps. The drain rate of the interface is 3 Mbps. Which action resolves the issue?

• A.Enable link level pause on the interface
• B.Configure pause error-disable recovery
• C.Set priority flow control pause
• D.Reset priority flow counters

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

A PC belongs to VLAN 68 The user experiences a large amount of packet loss when communicating with hosts that are outside of VLAN 68. Which action resolves the problem?

• A.Replace HSRP with GLBP
• B.Enable the peer-gateway feature
• C.Remove the HSRP configuration
• D.Configure ip arp synchronization on both switches.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?

• A.policy-default action statement
• B.event-default action statement
• C.event statement
• D.IP address of the SNMP server

Comment: *

Name: *

Email: *

Verification: *

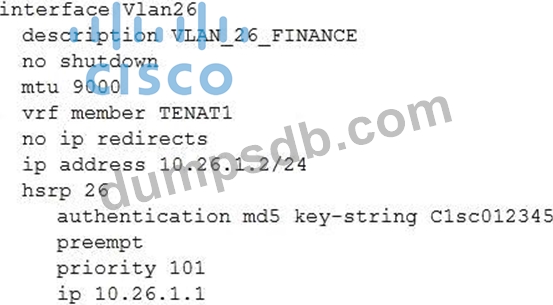

Refer to the exhibit.

The HSRP configuration in the exhibit fails to function. Which action resolves this issue?

• A.Enable IP redirects.
• B.Set the MTU to 1500 bytes.
• C.Configure HSRP version 2.
• D.Configure the same HSRP group on both devices.

Comment: *

Name: *

Email: *

Verification: *
