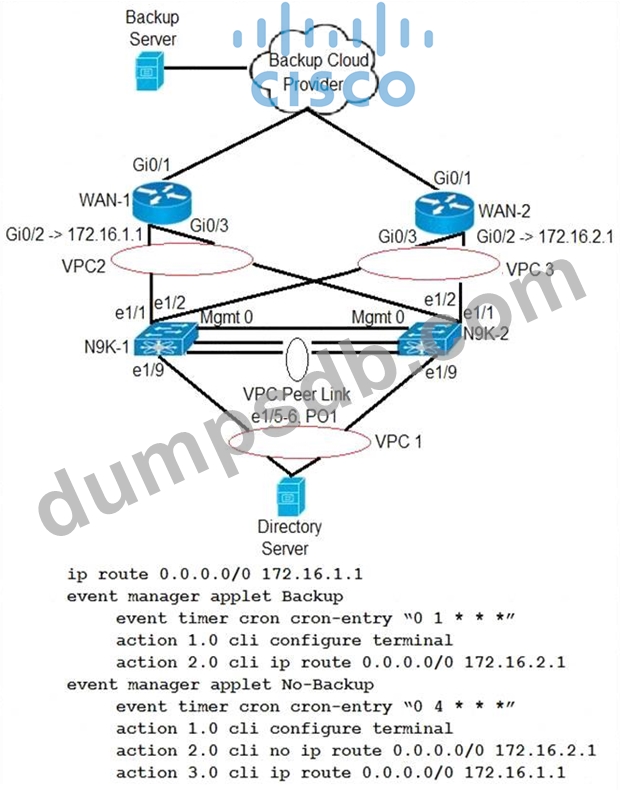

Refer to the exhibit.

Partial configuration from N9K-1 and N9K-2 is included. The client has two WANs connected.
* WAN-1 is for normal business-day activities.
* WAN-2 is for server backups during nonworking hours of 1:00 a.m. to 5:00 a.m. daily.
The client says that at the scheduled time for backup, the data center server failed to use the WAN-2 link to back up the servers to the cloud backup system. What is the solution to this problem?

• A.The applet called "Backup" must include an action to remove the current static route.
• B.The event timer must be written in epoch time format.
• C.The Cron entry must be configured without double quotes.
• D.The Cisco Nexus switch must be configured with one applet because a configuration with two applets will fail.

Comment: *

Name: *

Email: *

Verification: *

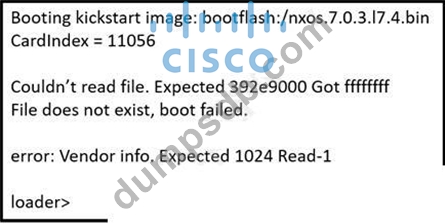

Refer to the exhibit.

A network engineer upgrades the firmware of a Cisco Fabric Interconnect from boot flash. During the process, the fabric interconnect reboots and displays the message shown in the exhibit. Which action resolves the issue?

• A.Reload the switch and boot the kickstart image from the TFTP server
• B.Reset the I/O module and install the firmware image from the boot flash
• C.Remove the service pack and upgrade through the auto-install procedure
• D.Boot the kickstart image from boot flash and load the system image

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

A network engineer configures OSPF protocol between two Cisco Nexus 7000 Series Switches. The OSPF neighbors fail to synchronize OSPF databases. Which action resolves the issue?

• A.Match the OSPF area between the two devices.
• B.Configure the IP addresses of the interface in the same subnet.
• C.Change the OSPF area type to 2 on n7k-1.
• D.Set the same MTU values on both sides of the link.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An attempt to bind the Ethernet interface to vFC fails. Which action resolves the issue?

• A.Add the FCoE VLAN to the allowed VLAN list.
• B.Configure the FCoE VLAN that corresponds to the vFC VSAN as a private VLAN.
• C.Configure the interface as a trunk port.
• D.Configure the interface to use the native VLAN of the trunk port.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An engineer is configuring boot from iSCSI on a Cisco UCS B-Series Blade Server, but the LUN fails to mount. Which action resolves the issue?

• A.Statically configure the target information in the Boot Policy.
• B.Configure an MTU size of 9000 on the appliance port.
• C.Set a connection timeout value of 250 in the iSCSI Adapter Policy.
• D.Configure a QoS policy on the vNIC.
