Refer to the exhibit. A network engineer deploys scripts to the guest shell of a Cisco Nexus switch. The scripts fail to operate properly due to the limited CPU and file system resources that are assigned by default to the guest shell. The engineer allocated more memory and disk space to the guest shell, but the application continues to fail. Which action resolves the issue?

• A.Upgrade the guest shell
• B.Redeploy the bash shell
• C.Reboot the guest shell
• D.Disable and enable bash shell

Comment: *

Name: *

Email: *

Verification: *

Cisco UCS Manager raises a critical error message that indicates that the system has overlapping Ethernet and FCoE VLANs. All of the Ethernet traffic on the overlapping VLANs drops. Which action resolves the issue?

• A.Modify the VLAN assignment to vNICs.
• B.Change the PIN groups on the vHBAs.
• C.Modify the FCoE VLAN.
• D.Set the FCoE VLAN as the native VLAN on server uplinks.

Comment: *

Name: *

Email: *

Verification: *

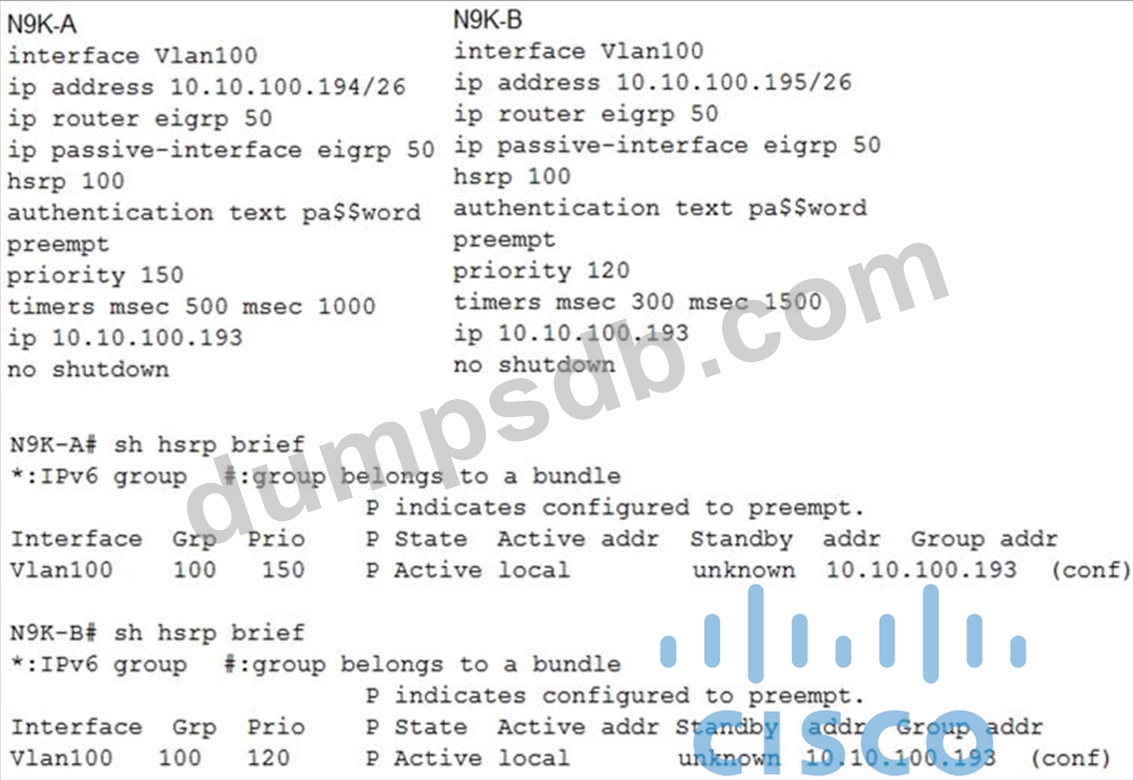

Refer to the exhibit.

The HSRP instance on both switches is showing as active. Which action resolves the issue?

• A.Configure the HSRP timers to be the same.
• B.Allow VLAN 100 between the switches.
• C.Configure the IP address of N9K-B on the same subnet as N9K-A.
• D.Configure preempt on only one of the switches.

Comment: *

Name: *

Email: *

Verification: *

You have an ACI environment with three APICs, two spine switches, and four-leaf switches. You wipe and reboot all APICs first then leaf and spine switches one-by-one and successfully go through the Initial Setuo dialogue on the APIC 1 CIMC KVM console. When you log in to the APIC1 WebGUI, you notice that you do not see any directly connected leaf switches being discovered under Fabric > Inventory > Fabric Membership. What is the cause of the issue?

• A.The leaf nodes were not erased properly, which caused a fabric parameters mismatch with the APIC1.
• B.Rebooting the APICs and the leaf and spine switches after wiping them is not required.
• C.You forgot to enter the TEP Pool value during the Initial Setup dialogue on APIC1.
• D.The same Fabric Name value should be used before after wiping all devices.

Comment: *

Name: *

Email: *

Verification: *

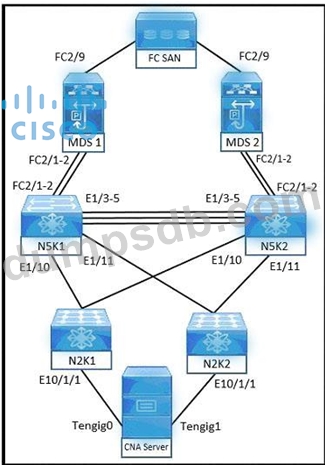

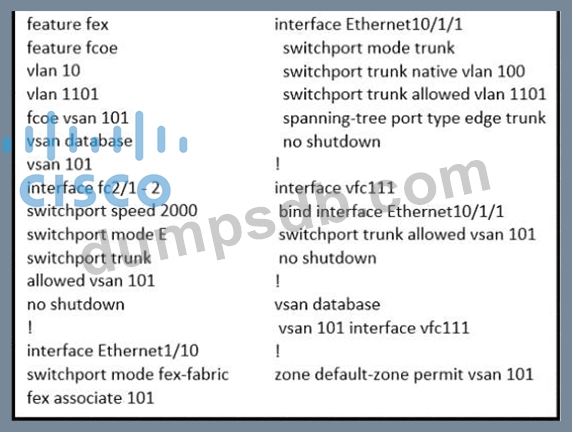

Refer to the exhibits.



An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server Which set of actions resolves this problem?

• A.Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.
• B.Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.
• C.Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration
• D.Assign native VLAN 10 with fc2.'l - 2 and allow VLAN 10 in trunk configuration.
