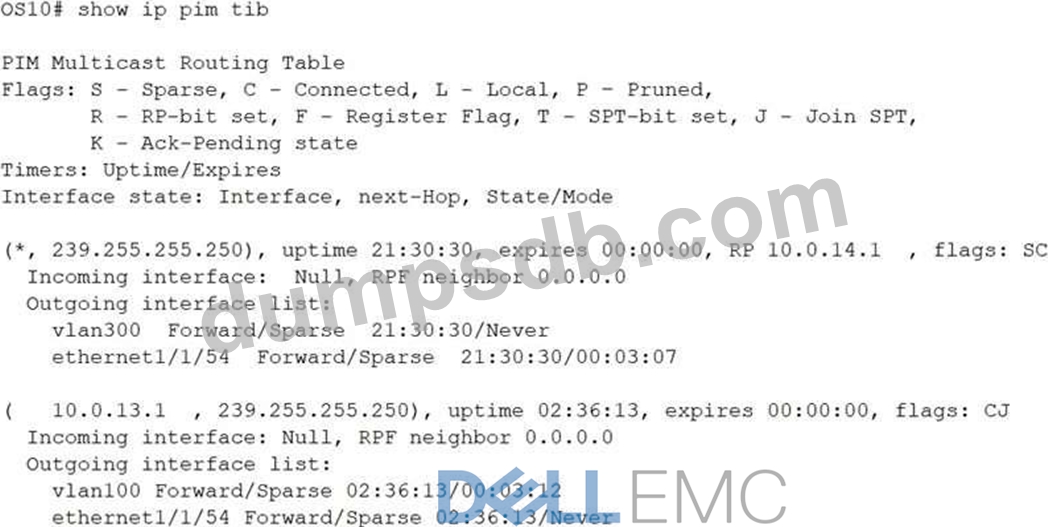

Refer to the exhibit.
Where is the rendezvous point for the group 239.255.255.250?

• A.vlan300
• B.eth1/1/54
• C.10.0.13.1
• D.10.0.14.1

Comment: *

Name: *

Email: *

Verification: *

What is a valid OS10 iBGP configuration?

• A.S2(config)# router bgp 64507
  S2(config-router-bgp-64507)# peer-as 64507
  S2(config-router-bgp-64507)# neighbor 192.168.32.1
  S2(config-router-neighbor)# update-source loopback 0
  S2(config-router-neighbor)# no shutdown
• B.S2(config)# router bgp 64507
  S2(config-router-bgp-64507)# neighbor 192.168.32.1
  S2(config-router-bgp-64507)# remote-as 64507
  S2(config-router-bgp-64507)# update-source loopback 0
  S2(config-router-bgp-64507)# no shutdown
• C.S2(config)# router bgp 64507
  S2(config-router-bgp-64507)# neighbor 192.168.32.1
  S2(config-router-neighbor)# remote-as 64507
  S2(config-router-neighbor)# update-source loopback 0
  S2(config-router-neighbor)# no shutdown
• D.S2(config)# router bgp 64507
  S2(config-router-bgp-64507)# remote-as 64507
  S2(config-router-bgp-64507)# neighbor 192.168.32.1
  S2(config-router-neighbor)# update-source loopback 0
  S2(config-router-neighbor)# no shutdown

Comment: *

Name: *

Email: *

Verification: *

There is a spanning tree mismatch at the global level. PVST+ is configured on a VLT peer. All VLT port channels go down on both VLT peers. A syslog error message is generated. What is the correct action to resolve the issue?

• A.Verify the VLT LAG ID is configured correctly on both VLT peers.
• B.Enable RSTP on both VLT peers.
• C.Use the show VLT detail and show VLT brief commands to view the VLT port channel status information.
• D.Perform a mismatch check after the VLT peer is established.

Comment: *

Name: *

Email: *

Verification: *

When creating an alias in OS10 what is the maximum number of variable input parameters that can be defined?

• A.6
• B.9
• C.3
• D.12

Comment: *

Name: *

Email: *

Verification: *

When using Policy Based Routing what is a valid matching criterion?

• A.AAA security credentials
• B.Destination TCP port number
• C.Source hostname
• D.802.1Q VLAN ID
