-- Exhibit -

-- Exhibit --

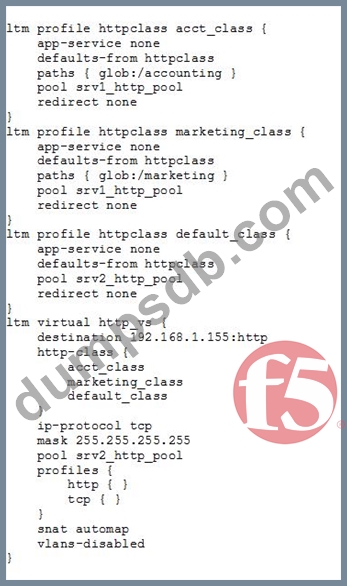

Refer to the exhibit.
An LTM Specialist is reviewing the virtual server configuration on an LTM device.
Which two actions should the LTM Specialist perform to minimize the virtual server configuration? (Choose two.)

• A.Remove 'snat automap' from the virtual server.
• B.Remove the 'default_class' from the virtual server.
• C.Remove the 'http' profile from the virtual server.
• D.Combine 'acct_class' and 'marketing_class' into one class and update associations on the virtual server.
• E.Combine 'marketing_class' and 'default_class' into one class and update associations on the virtual server.

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit-



-- Exhibit -
Refer to the exhibits.
An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does work when accessed directly via the application servers. The virtual server
192.168.1.211:443 is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. No Client or Server SSL profiles are associated. The LTM Specialist has collected two traffic captures to help determine the issue.
What is the problem with the configuration on the LTM device?

• A.Pool member is configured to use wrong port.
• B.Virtual server is configured without SSL Profiles.
• C.Virtual server is configured to use wrong port.
• D.Pool member is configured for SSL off-loading.

Comment: *

Name: *

Email: *

Verification: *

The output of a tmsh command is: ------------------------------------------------------------ Net::Interface Name Status Bits Bits Errs Errs Drops Drops Colli In Out In Out In Out sions
------------------------------------------------------------ 1.1 down 0 0 0 0 0 0 0 1.2 up 191.4K 0 0 0 374 0 0 1.3 down 0 0
0 0 0 0 0 1.4 up 22.5K 0 0 0 44 0 0 2.1 miss 0 0 0 0 0 0 0 2.2 miss 0 0 0 0 0 0 0 mgmt up 43.2G 160.0G 0 0 0 0
0
Which command was executed on the LTM device to show the output?

• A.tmsh show /net interface status
• B.tmsh /net show interface status
• C.tmsh show /net interface
• D.tmsh /net show interface

Comment: *

Name: *

Email: *

Verification: *

Given the iRule:
when HTTP_REQUEST {
if {([HTTP::username] ne "") and ([HTTP::password] ne "") } {
log local0. "client ip [IP::remote_addr] credentials provided [HTTP::username] [HTTP::password]"}
else {
pool old_application_pool
}
}
The associated virtual server has a default pool named new_application_pool.
Which functionality does the iRule provide?

• A.Allows clients with credentials to access the old_application_pool and logs the attempted access of clients with credentials to the new_application_pool.
• B.Allows clients with credentials to access the old_application_pool and logs the access of clients without credentials to the new_application_pool.
• C.Allows clients without credentials to access the old_application_pool and logs the attempted access of clients without credentials to the new_application_pool.
• D.Allows clients without credentials to access the old_application_pool and logs the access of clients with credentials to the new_application_pool.

Comment: *

Name: *

Email: *

Verification: *

An LTM Specialist connects to an LTM device via the serial console cable and receives unreadable output.
The LTM Specialist is using the appropriate cable and connecting it to the correct serial port.
Which command should the LTM Specialist run through ssh to verify that the baud rate settings for the serial port are correct on the LTM device?

• A.tmsh edit /sys console
• B.tmsh show /ltm console
• C.tmsh show /sys console
• D.tmsh list /sys console
