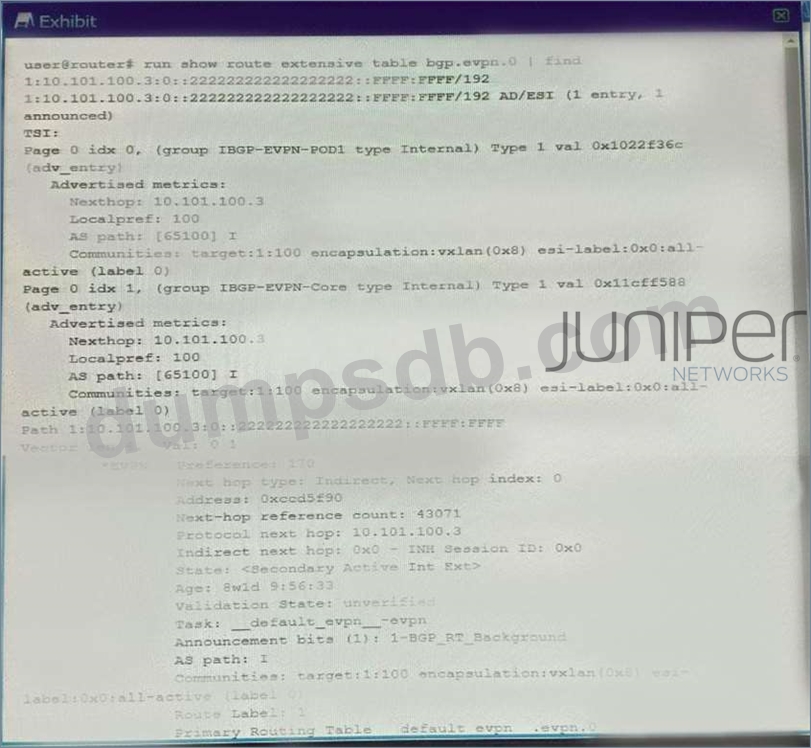

Exhibit:

Referring to the exhibit, which three statements are correct? (Choose three.)

• A.This route contains the MAC address of an end host.
• B.This ESI Auto-Discovery route is used for designated forwarder election.
• C.This route is an EVPN Type-1 route.
• D.The ESI is 00:22:22:22:22:22:22:22:22:22.
• E.The router with the IP address 10.101.100.3 is the originator of this route.

Comment: *

Name: *

Email: *

Verification: *

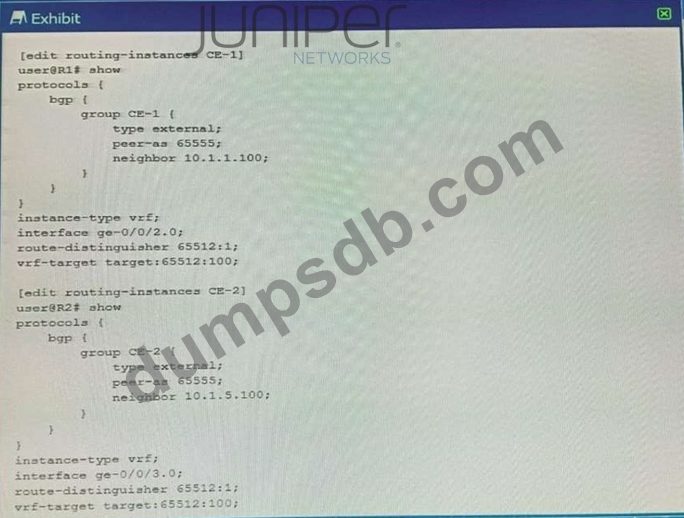

Exhibit:

Referring to the exhibit, which two statements are true? (Choose two.)

• A.An AS loop will exist between CE-1 and CE-2 and the BGP routes will not be shared.
• B.The CE-1 and CE-2 routes will have the same route distinguisher, which will not stop the BGP routes from being shared.
• C.The CE-1 and CE-2 routes will have the same route distinguisher, which will stop the BGP routes from being shared.
• D.An AS loop will not exist between CE-1 and CE-2 and the BGP routes will be shared.

Comment: *

Name: *

Email: *

Verification: *

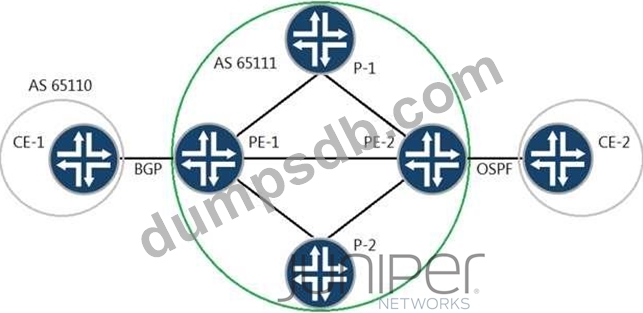

You have a Layer 3 VPN established between PE-1 and PE-2 to allow communication between CE-1 and CE-2.
Referring to the exhibit, which statement is correct?

• A.You will need a BGP export policy on PE-1 to redistribute the routes, learned from CE-1, through the Layer 3 VPN.
• B.You will need an OSPF import policy on PE-1 to receive the BGP routes, learned from PE-2, through the Layer 3 VPN.
• C.You will need a VRF import policy on PE-1 to advertise the BGP routes, learned from CE-1, through the Layer 3 VPN.
• D.You will need an OSPF export policy on PE-2 to redistribute the BGP routes, learned from PE-1, through the Layer 3 VPN.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

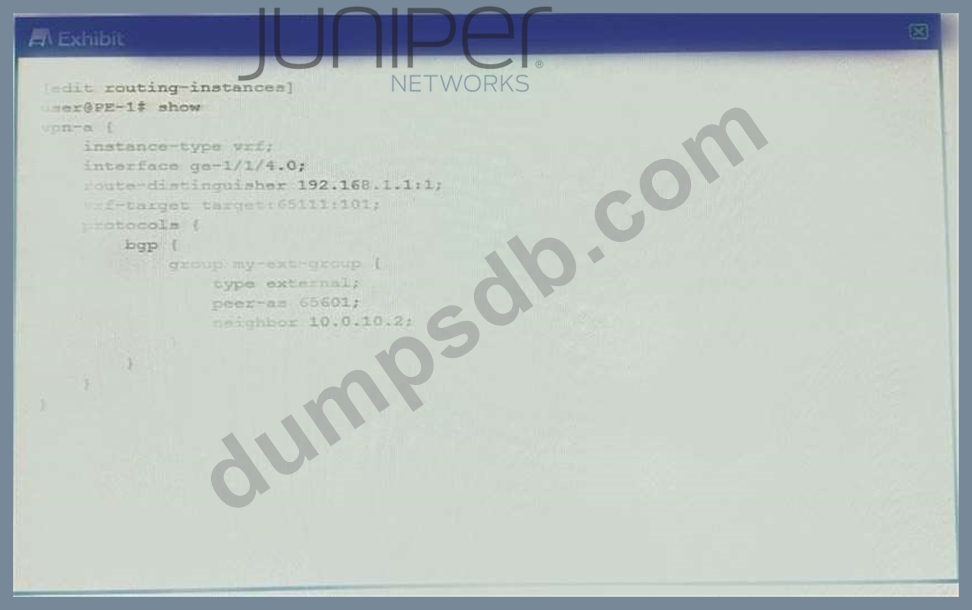

You have an established Layer 3 VPN between two PE devices. You are asked to only send certain routes from PE-1 over the VPN to the remote site while maintaining all the routes on the PE-1 device. You created a policy that matches the specific routes and then tags these routes with the appropriate target community values.
In this scenario, which configuration changes must be made to satisfy the requirement?

• A.Configure the vrf-export parameter and apply the policy under the edit routing-instances vpn-a hierarchy.
• B.Configure a RIB group and apply the policy as an import policy to routes distributed into the bgp I3vpn.0 routing table
• C.Configure the export parameter and apply the policy to the my-ext-group BGP group configuration.
• D.Configure the import parameter and apply the policy to the my-ext-group BGP group configuration.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

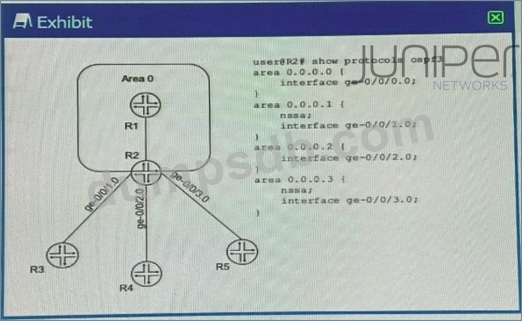

A network administrator is concerned about the number of LSAs that they are observing on the network.
What will reduce Type 7 LSAs advertised from R2 to the non-backbone routers shown in the exhibit?

• A.Configure nssa under area 0.0.0.2 on R2.
• B.Configure no-summaries under area 0.0.0.2 on R2.
• C.Configure no-naaa-abr under protocols ospf3 on R2.
• D.Configure no-summaries under protocols ospf3 on R2.
