Exhibit:

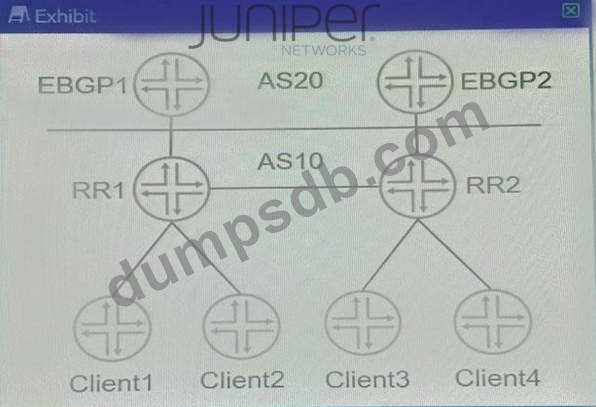

Referring to the exhibit, which two statements about route reflectors are correct? (Choose two.)

• A.RR2 advertises routes learned from Client3 to EBGP2 with itself as the next hop.
• B.RR2 adds its cluster ID when advertising routes from CHent4 to Client3.
• C.RR1 advertises routes learned from Client1 to RR2 with itself as the next hop.
• D.RR1 and RR2 need the same cluster ID to exchange routes learned from their clients.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

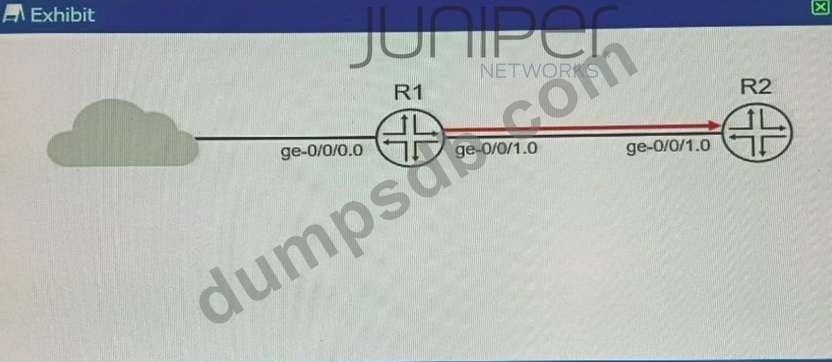

R1 assigns incoming voice traffic to the ef forwarding class. All other traffic is assigned to the best-effort forwarding class You have configured a CoS re-write rule on R1 to include the correct CoS bit values in packets sent towards R2 You want R2 to classify traffic using the CoS markings created by R1.
Which two configuration steps are necessary to accomplish this task? (Choose two.)

• A.Configure a behavior aggregate classifier on R2.
• B.Assign the behavior aggregate classifier to the ge-0/0/1.0 interface on R2.
• C.Assign the CoS re-write rule to the ge-0/0/1.0 interface on R2.
• D.Configure a CoS re-write rule on R2 and assign matching CoS values.

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

You are troubleshooting an issue where R1 is no longer receiving the default IS-IS route from R3.
Referring to the exhibit, which action would you take to solve the problem?

• A.Delete the protocols isis import configuration statement on R1.
• B.Delete the protocols isis level 2 disable configuration statement on R3.
• C.Delete the protocols isis ignore-attached-bit configuration statement on R3.
• D.Delete the protocols isis ignore-attached-bit configuration statement on R1.

Comment: *

Name: *

Email: *

Verification: *

Exhibit.

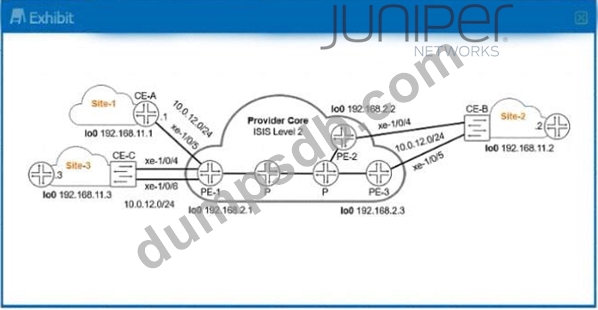

You have the LDP signaled VPLS topology as shown in the exhibit CE-B at Site-2 is multihomed to both PE-2 and PE-3 In this scenario where would you configure loop prevention?

• A.PE-2
• B.CE-B
• C.PE-3
• D.PE-1

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

Referring to the exhibit, which statement is true?

• A.This is a multipath route.
• B.The route is learned from only one neighbor.
• C.The route is learned from three different neighbors.
• D.This is a multihop route.
