Exhibit:

All adjacencies have been formed, no extra options have been configured, and no policies have been written.
Referring to the exhibit, which two statements are correct? (Choose two.)

• A.R1 cannot reach R5
• B.R1 will create its own default route that points to R2
• C.R1 can reach R5.
• D.R2 will create a default route and send it as a TLV to R1

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

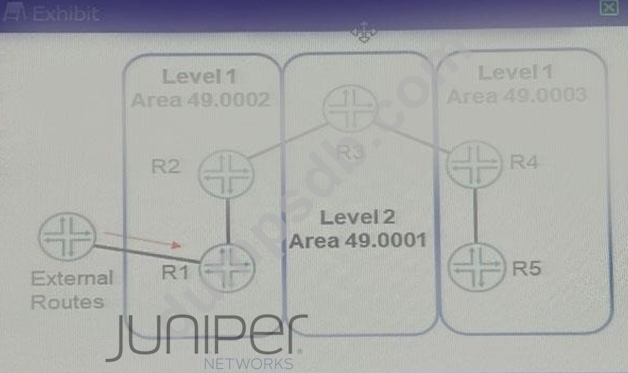

Referring to the exhibit, external routes are being received at R1. These routes must appear on R5.
Which action will produce this result?

• A.Write an export policy on R4 from level 2 to level 1 matching the external routes.
• B.Turn on wide metrics on R4 and R5 and write an export policy on R2 from level 1 to level 2 matching the external routes.
• C.Write an export policy on R2 from level 1 to level 2 matching the external routes.
• D.Turn on wide metrics on R1 and R2 and write an export policy on R4 from level 2 to level 1 matching the external routes.

Comment: *

Name: *

Email: *

Verification: *

Which two types of LSAs have an area scope? (Choose two)

• A.Type 7
• B.Type 2
• C.Type 11
• D.Type5

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

You have the Layer 2 VPN configuration shown in the exhibit. You are asked to determine the remote site ID for ge-1/0/1.512.
In this scenario, what is the remote site ID?

• A.4
• B.3
• C.1
• D.5

Comment: *

Name: *

Email: *

Verification: *

Exhibit:

The exhibit shows a BGP peering session for two PE routers. The BGP session is up, but the hosts in the Layer
2 VPN that uses the BGP session are unable to communicate.
What is the problem in this situation?

• A.The BGP peer does not support the add-path feature.
• B.There is a mismatch in the supported NLRI address families between the BGP peers.
• C.The BGP peer does not support the restarter functionality.
• D.The local BGP router does not support Layer 2 VPN and Layer 3 VPN NLRI address families at the same time.

Comment: *

Name: *

Email: *

Verification: *
